| 尺寸（英寸） | 图片 | 型号 | Resolution | Outline Dimension (mm) | Viewing Area (mm) | Active Area (mm) | Interface | IC Part No. | Color | PIN | FPC type |
|---|---|---|---|---|---|---|---|---|---|---|---|

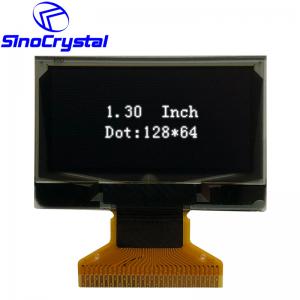

| 1.3寸 |
|
SCE0130001-V01 | 128×64 | 34.5×23×1.427 | 31.42×16.7 | 29.42×14.7 | 6800/8080 Interface,4-wire serial interface,I2C | SH1106G | Monochrome (White) | 30 | Connector |

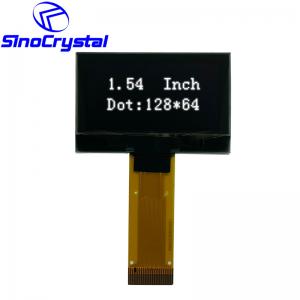

| 1.54寸 |
|
SCE154001-V01 | 128×64 | 42.04x27.22×1.41 | 37.052x19.516 | 35.052x17.516 | 6800/8080 interface, 4 wire serial interface, I2C | SPD0301ZD | Monochrome (White) | 24 | Connector |
