型号:
SC8080001-V01Resolution:
80*80Outline Dimension (mm):
28.2*32.3*2.1Viewing Area (mm):
24.2*23.8Interface:
-Driver IC:
ST7527Backlight:
NO BacklightPIN:

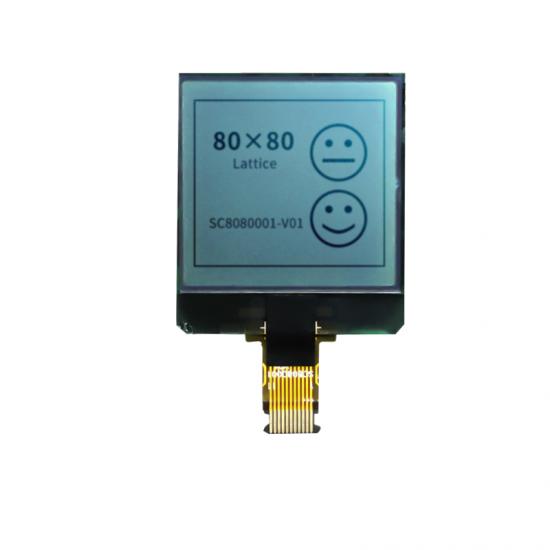

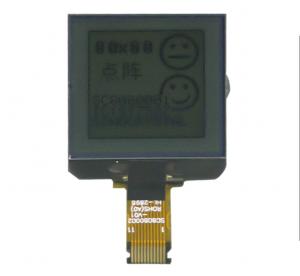

11SC8080001-V01 is a Graphic LCD Display with 80*80 resolution, it built in with ST7527 IC, 11 PIN, 6 o'clock View direction.

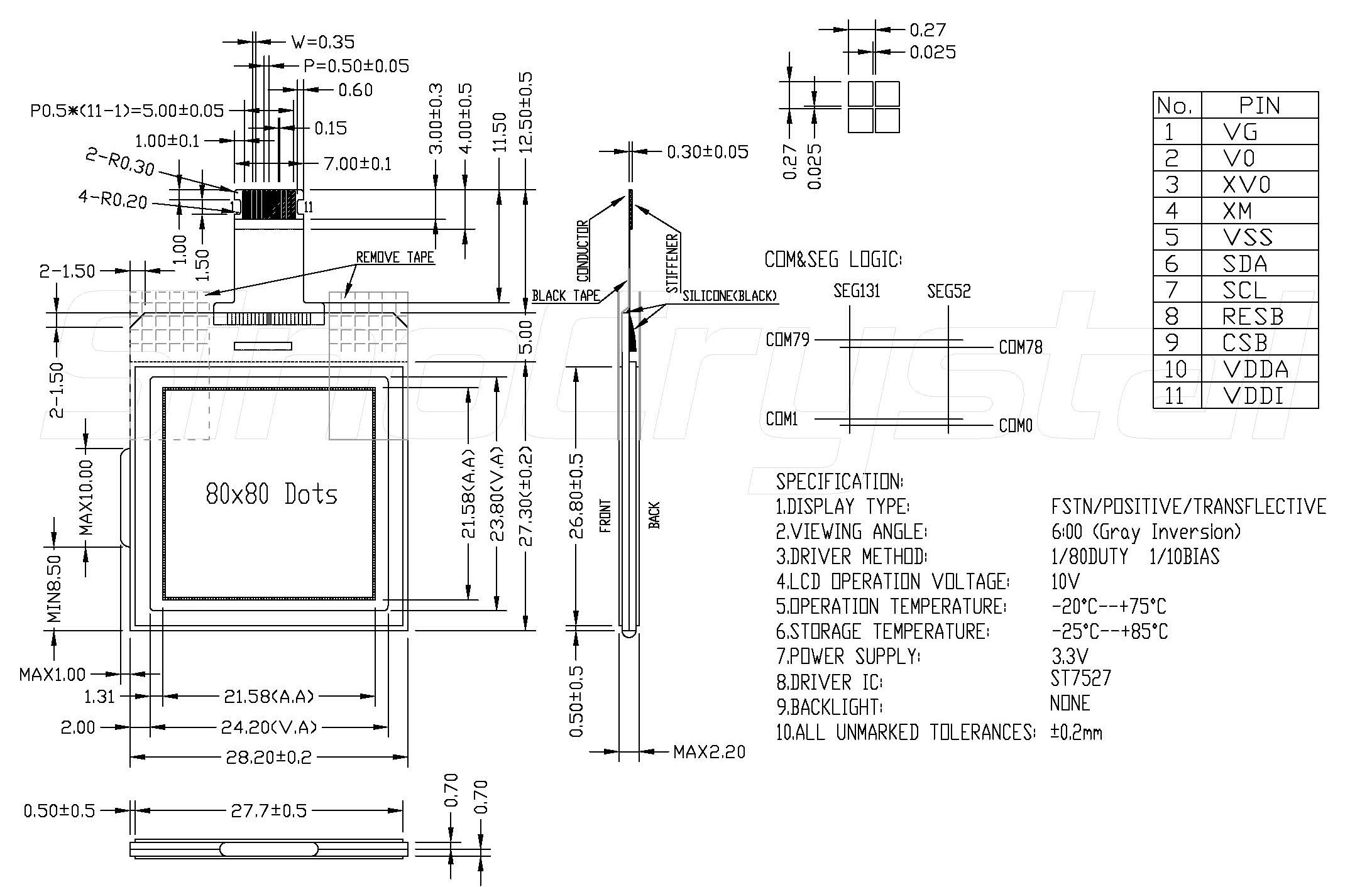

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF GRAPHIC | 80×80 | Mm |
| MODULE DIMENSION | 28.2×32.3×2.1 | Mm |
| VIEWING AREA | 24.20×23.80 | Mm |
| DOT SIZE | 0.245×0.245 | Mm |
| DOT PITCH | 0.27×0.27 | Mm |
| LCD TYPE | FSTN/ POSITIVE/TRANSFLECTIVE |
|
| DUTY | 1/80 |
|
| VIEWING DIRECTION | 6:00(GRAY INVERSION) | o'clock |
| BACK LIGHT TYPE | NONE |
|
| BACK LIGHT COLOR | NONE |
|
| APPROX. WEIGHT | TBD | G |
Interface Definition
| Pin No. | Symbol | Type | Description |
| 1 | VG | Power | LCD driving voltage for segments. |
| 2 | V0 | Power | LCD driving voltage for commons at negative frame. |
| 3 | XV0 | Power | LCD driving voltage for commons at positive frame. |
| 4 | XM | Power | LCD driving voltage for commons. |
| 5 | VSS | Power | Power Supply Ground. |
| 6 | SDA | I | Serial input data. |
| 7 | SCL | I | Serial input clock. |
| 8 | RESB | I |
Reset input pin. When RESB is "L", internal initialization is executed. |
| 9 | CSB | I | Chip select input pin. |
| 10 | VDDA | Power | Analog power. |
| 11 | VDDI | Power | Digital power. |
