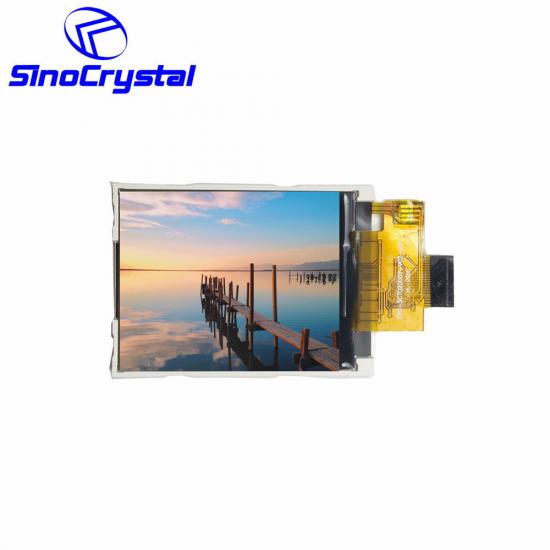

SCT020007-V02是一款分辨率为176RGB*220的2.0寸TFT液晶显示器，内置ST7735R集成电路，支持8位MCU接口，20针，6点钟方向显示。
型号:
SCT020007-V02Size (inch)尺寸（英寸）:
2.0寸分辨率:
176*220外形尺寸（mm）:
37.68*51.30*2.23可视尺寸（mm）:
32.28*40.40视域尺寸（mm）:
35.30*46.45视角:
6接口:
8bit MCUIC型号:
ST7775R亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 176RGB*220
Outline Dimension: 37.68*51.30*2.25
Active Area: 31.68*39.60
View area: 32.28*40.40
Interface: 8bit MCU
Driver IC: ST7735R
View Direction: 6 o'clock
PIN: 20
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

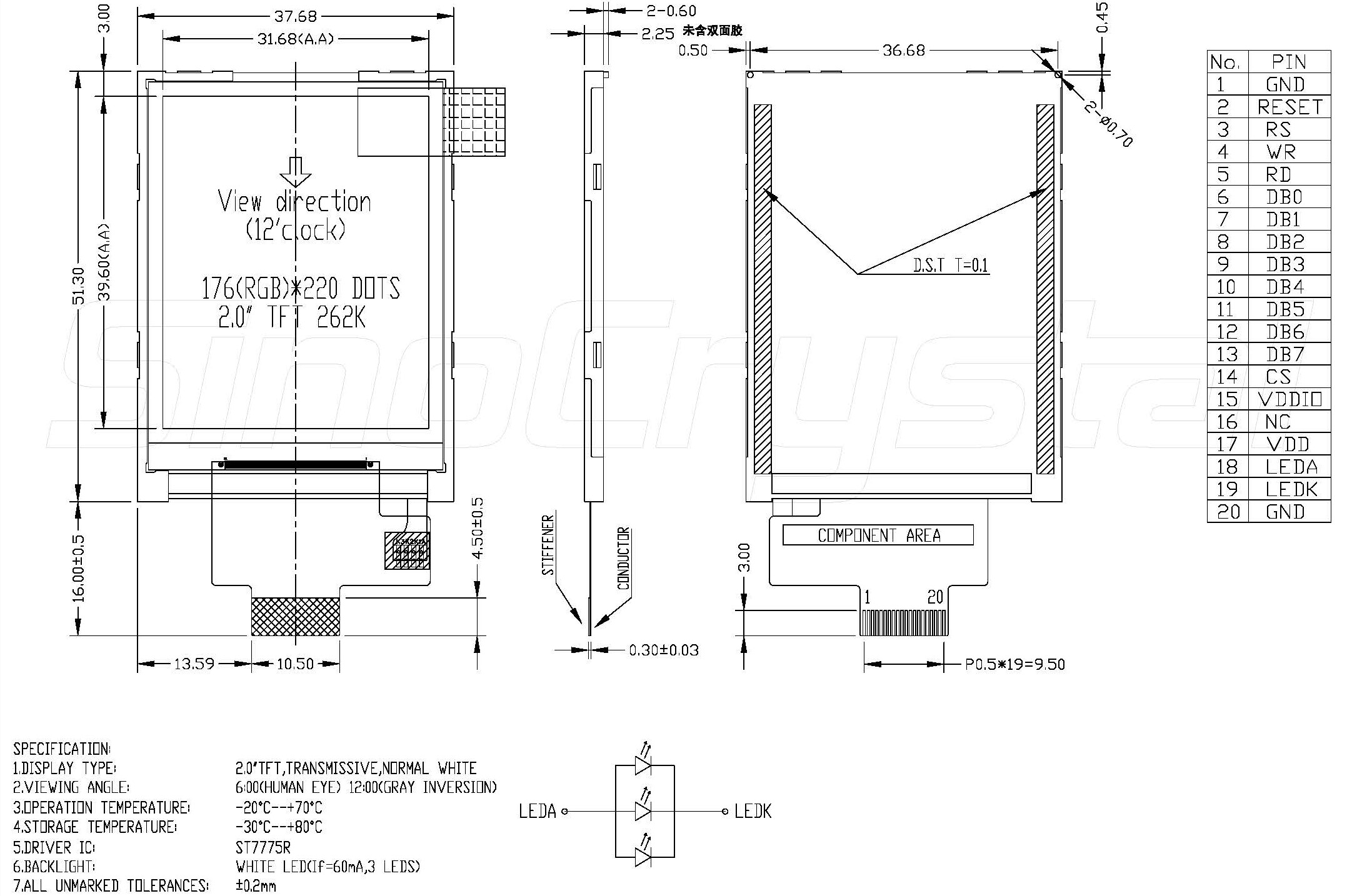

Drawing
General Specification
Item
Nominal Dimension
Unit
Dot Matrix
176 x RGB x 220
Dots
Module Size ( W×H×T )
37.68 x 51.30 x 2.25
mm.
Active Area ( W×H )
31.68 x 39.60
mm.
Pixel arrangement
RGB Stripe
mm.
Dot Pitch ( W×H )
0.18 x 0.18
mm.
Color depth
262K(MAX)
colors
Interface
8 bit MCU
-
Driving IC Package
COG
-
Operating temperature
-20 ~70
ºC
Storage temperature
-30~80
ºC
LCD Type
a-Si TFT
-
LCD Mode
TN/Normal White
-
Backlight Type
LED x 3
PCS
Interface Definition
Pin No
Pin Symbol
Level
Description
1
GND
0V
Ground
2
RESET
H/L
Chip reset signal
3
RS
H/L
Register select signal. 0:index register; 1: data register
4
WR
H/L
Write signal
5
RD
H/L
Read signal
6-13
DB0-DB7
H/L
Data bus
14
CS
H/L
Chip Select signal
15
IOVCC
1.65-3.3V
Power supply for logic
16
NC
-
17
VDD
2.5-3.3V
Power supply
18
LEDA
-
LED light, anode
19
LEDK
-
LED light, cathode.
20
GND
0V
Ground
