定制段液晶显示器HTN正透射COB ST7565R驱动液晶显示器

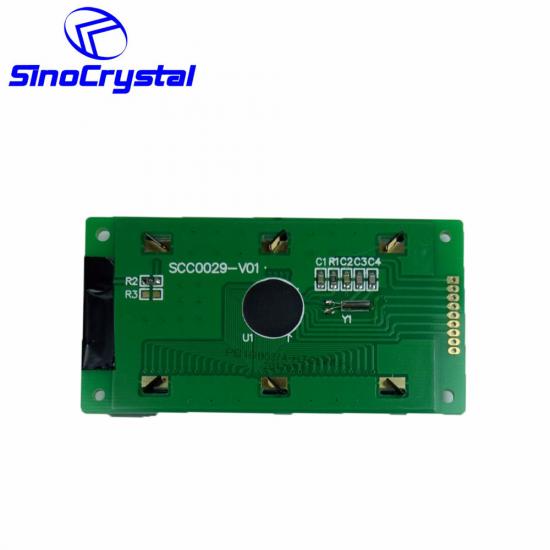

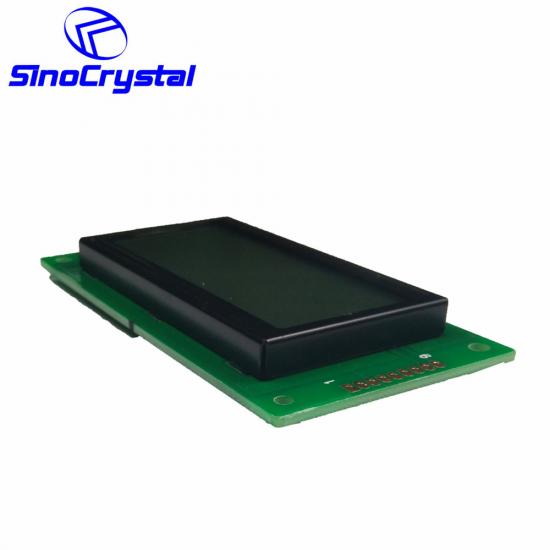

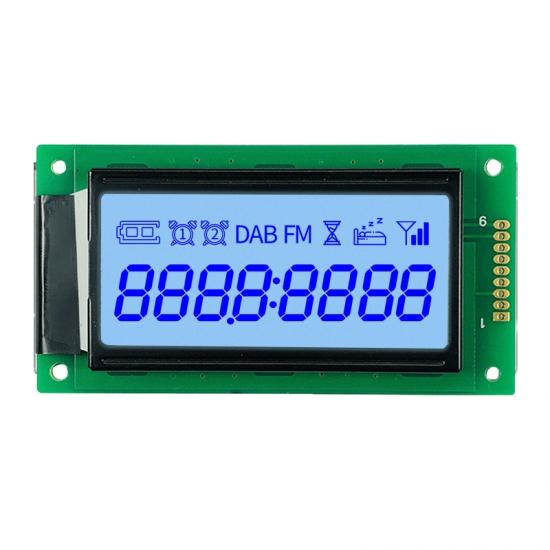

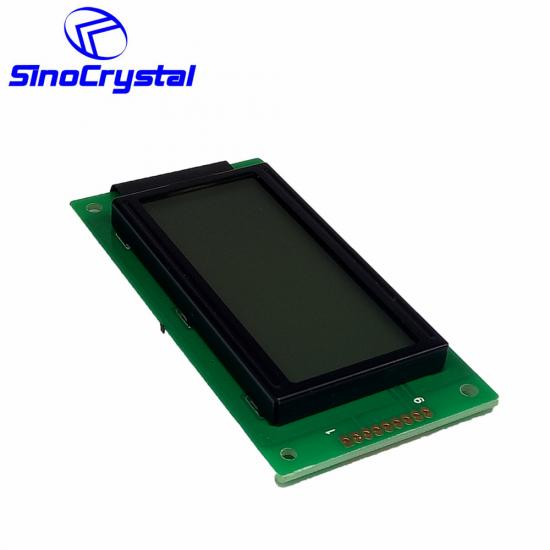

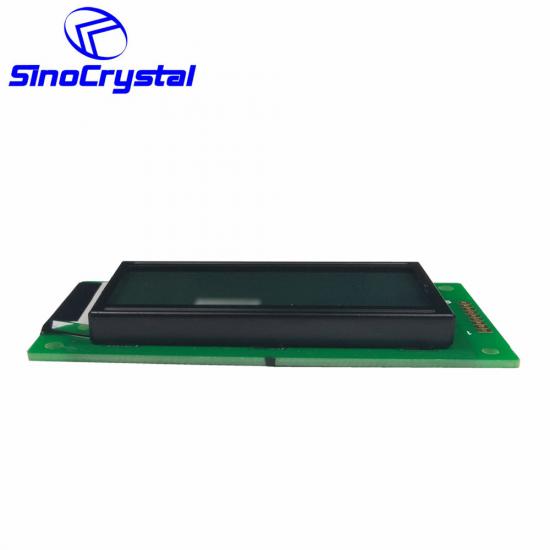

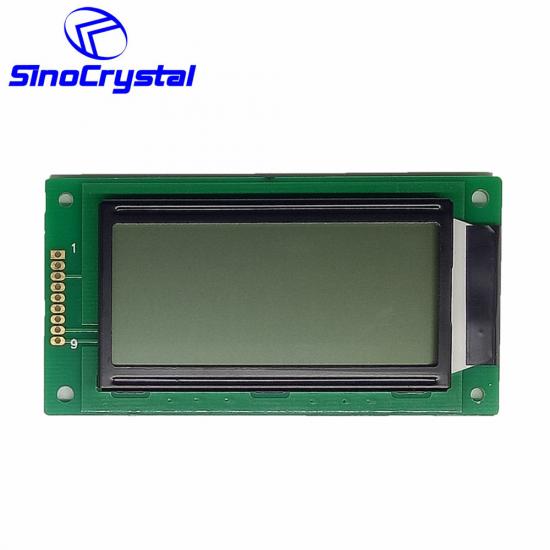

SCC0029-V01 is a Customized Segment Mono LCD DisplaySCC0029-V01是一款定制的分段单液晶显示器，内置8针，12点钟方向的视图。

型号:
SCC0029-V01
Display Type:
HTN
Outline Dimension (mm):
71.05*29.30*2.30
View area:
59.00*26.00
Driver IC:
?
Backlight:
White LED
View Direction:
12
PIN:
9

立即查询

产品详细信息

Basic Information

LCD Type: HTN Postitive Transflective

Number of Graphic: Segment

Outline Dimension: 84*44*9.8

View area: 59.00*26.00

View Direction: 12 o'clock

PIN: 9

Backlight: White LED

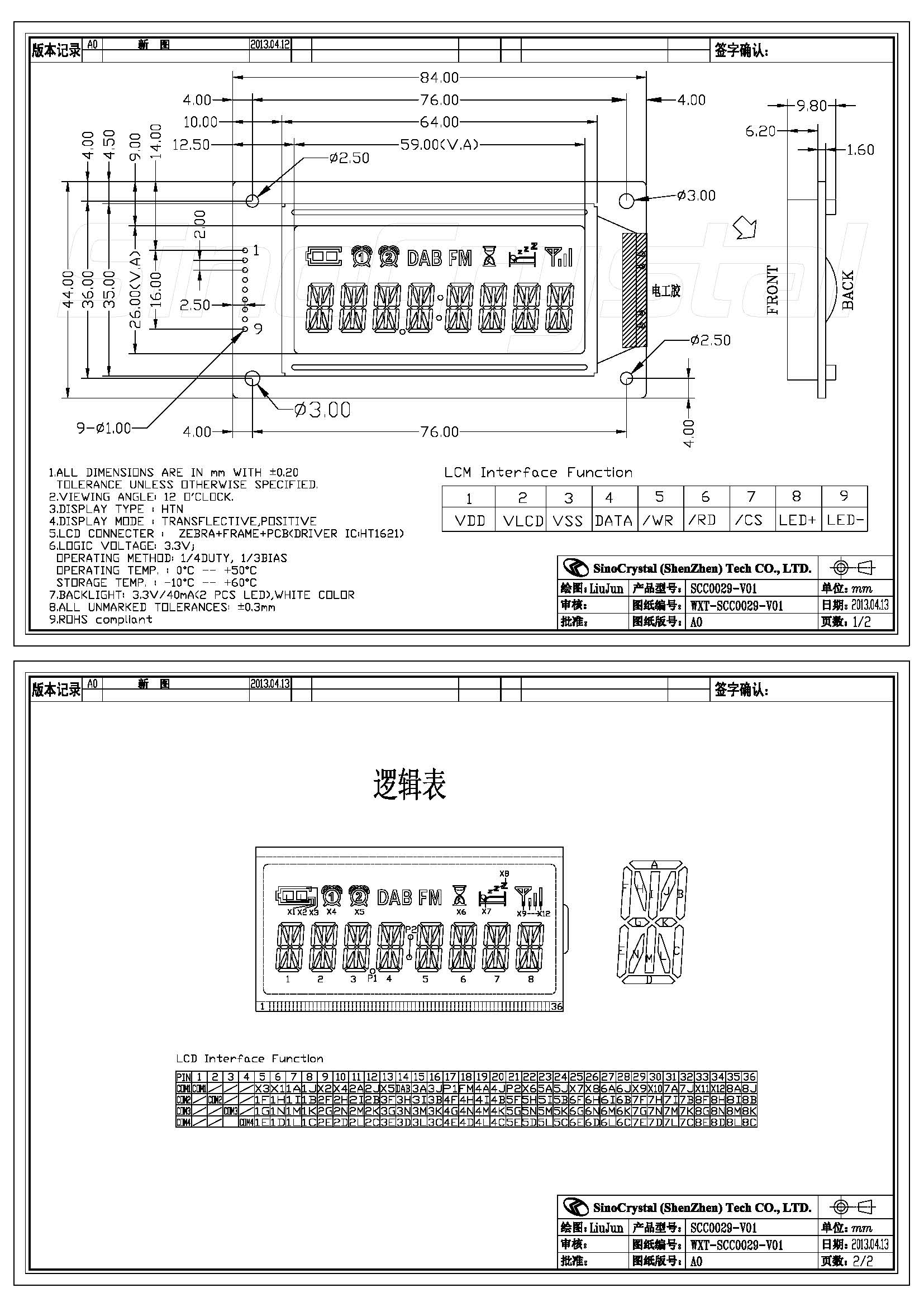

Drawing

General Specification

ITEM	STANDARD VALUE	UNIT
NUMBER OF GRAPHIC	SEGMENT	Mm
MODULE DIMENSION	84.0×44.0×9.8(MAX)	Mm
VIEWING AREA	59.0×26.0	Mm
DOT SIZE	-	Mm
DOT PITCH	-	Mm
LCD TYPE	HTN/ POSITIVE/TRANSFLECTIVE
DUTY	1/4
VIEWING DIRECTION	0.5	o'clock
BACK LIGHT TYPE	SIDE LIT LED
BACK LIGHT COLOR	WHITE
APPROX. WEIGHT	TBD	G

Interface Definition

Pin No.	Symbol	Level	Description
1	VDD	-	Supply voltage for logic
2	VLCD	-	Supply voltage for LCD
3	VSS	-	Ground
4	DATA	H/L	Serial data input/output
5	/WR	H/L	Write clock input
6	/RD	H/L	Read clock input
7	/CS	H/L	Chip selection input
8	LED+	--	Backlight anode
9	LED-	--	Backlight cathode
