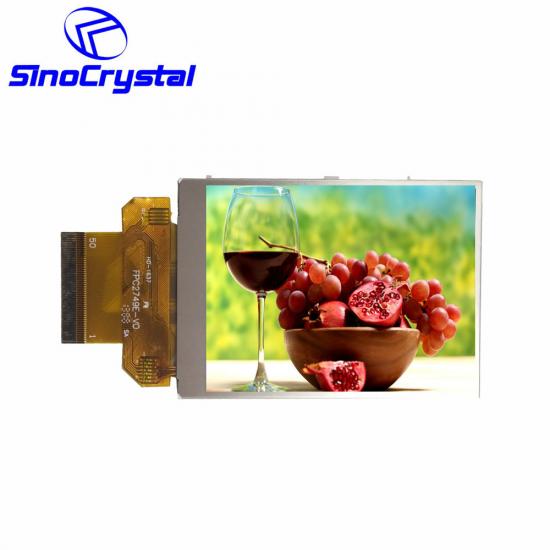

带MCU/RGB接口的2.8英寸TFT触摸屏显示器ILI9341 IC 50针

SCT028008-V02是一款2.8英寸TFT液晶显示器，分辨率240RGB*320，内置ILI9341集成电路，支持MCU/RGB接口，50针，6点钟方向

型号:
SCT028008-V02
Size (inch)尺寸（英寸）:
2.8寸
分辨率:
240*320
外形尺寸（mm）:
50.00*69.20*3.80
可视尺寸（mm）:
45.00*59.40
视域尺寸（mm）:
44.60*59.00
视角:
6
接口:
MCU/RGB
IC型号:
ILI9341
亮度（cd/m m2）:
300
触摸:
RTP
温度 (℃):
-20°C~70°C

立即查询

产品详细信息

Basic Information

Resolution: 240RGB*320

Outline Dimension: 50.00*69.20*2.50

Active Area: 36.72*48.96

View area: 45.00*59.40

Interface: MCU/RGB

Driver IC: ILI9341

View Direction: 12 o'clock

PIN: 50

Backlight: White LED

Touch Screen: Resistive Touch Screen

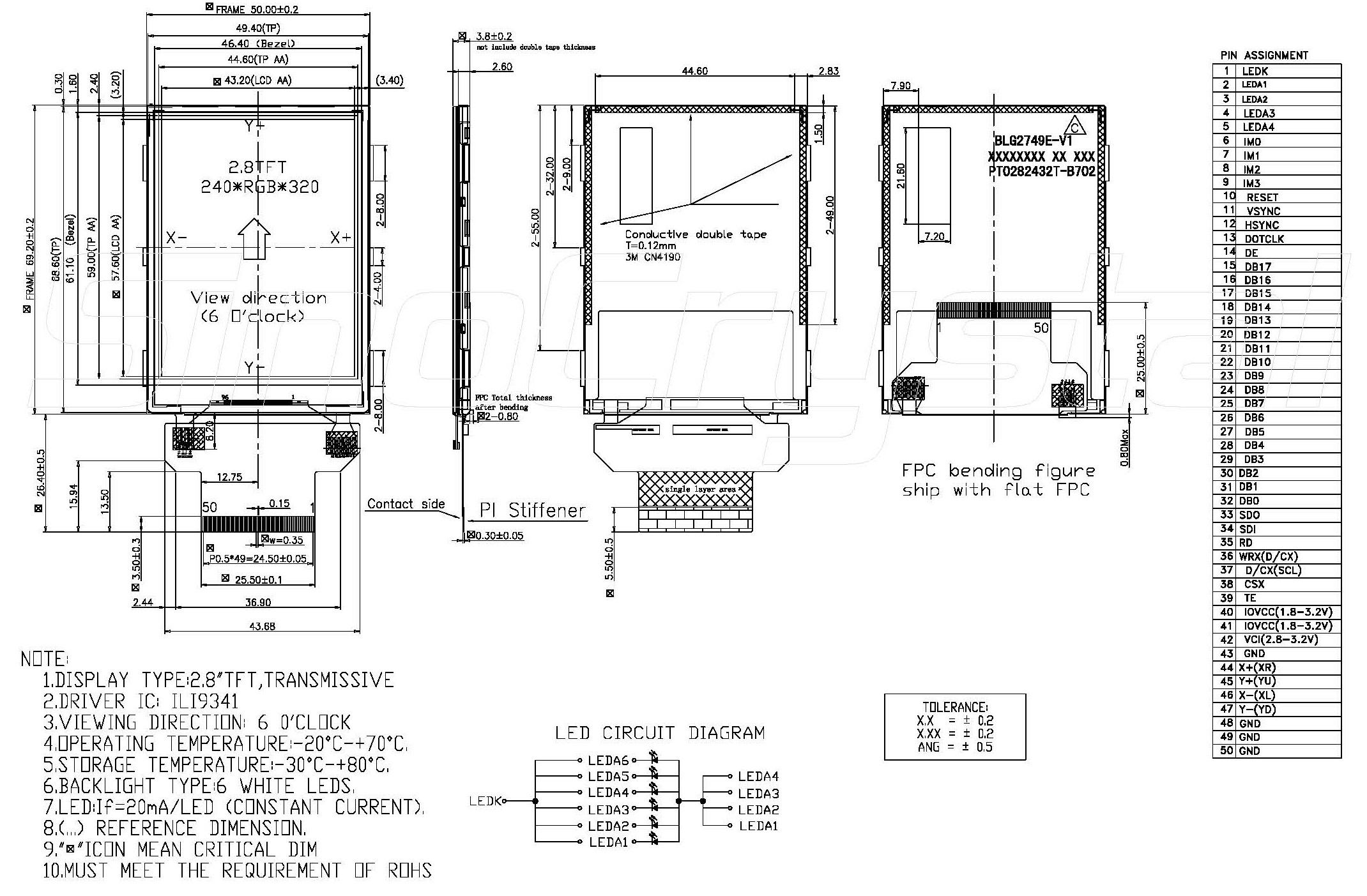

Drawing

General Specification

Item	Nominal Dimension	Unit
Dot Matrix	240 x RGB x 320	Dots
Module Size ( W×H×T )	50.00 x 69.20 x 2.60	mm.
Active Area ( W×H )	43.20 x 57.60	mm.
Pixel arrangement	RGB Stripe	mm.
Dot Pitch ( W×H )	0.18 x 0.18	mm.
Color depth	262K(MAX)	colors
Interface	MCU , RGB	-
Driving IC Package	COG	-
Operating temperature	-20 ~70	ºC
Storage temperature	-30~80	ºC
LCD Type	a-Si TFT	-
LCD Mode	TN/Normal White	-
Backlight Type	LED x 6	PCS

Interface Definition

Pin No	Pin Symbol	Level	Description
1	LEDK	-	LED light, cathode.
2	LEDA1	-	LED light, anode
3	LEDA2	-	LED light, anode
4	LEDA3	-	LED light, anode
5	LEDA4	-	LED light, anode
6	IM0	H/L	MCU Interface Mode Select
7	IM1	H/L
8	IM2	H/L
9	IM3	H/L
10	RESET	H/L	Reset signal
11	VSYNC	H/L	Vertical Synchronizing Signal in RGB Interface
12	HSYNC	H/L	Horizontal Synchronizing Signal in RGB Interface
13	DOTCLK	H/L	Dot Clock Signal in RGB Interface
14	DE	H/L	Data ENABLE Signal in RGB Interface
15-32	DB17-DB0	H/L	Data bus
33	SDO	H/L	SPI data out
34	SDI	H/L	SPI data in
35	RD	H/L	Read Signal
36	WRX(D/CX)	H/L	Write Signal (selector of command or parameter in SPI mode)
37	D/CX(SCL)	H/L	selector of command or parameter (SPI clock in SPI mode)
38	CSX	H/L	Chip Select
39	TE	H/L	Tearing effect output
40-41	IOVCC	1.65-3.3V	Power supply for logic
42	VCI	2.5-3.3V	Power supply
43	GND	0V	Ground
44	NC	-
45	NC	-
46	NC	-
47	NC	-
48-50	GND	0V	Ground
