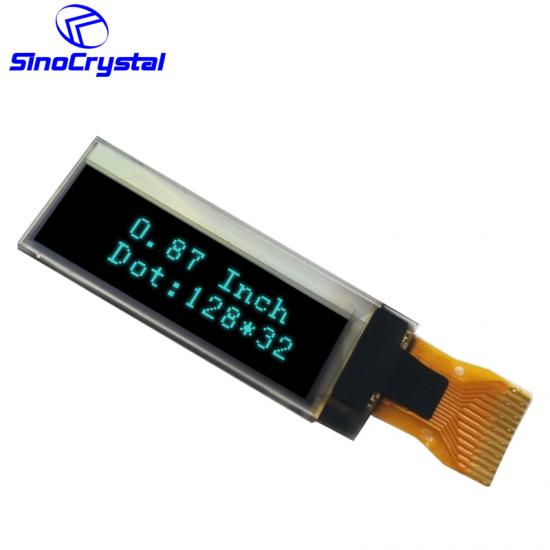

型号:
SCE087001-V01Size (inch)尺寸(英寸):
0.87寸Resolution:
128×32Outline Dimension (mm):
29.00x8.7x1.22Viewing Area (mm):
22.856x6.824Active Area (mm):
21.356×5.324Interface:
4-wire SPIIC Part No.:
SSD1316ZColor:
Monochrome (White)PIN:
15FPC type:
Connector
Basic Information
Display Color: WHITE
Dot Matrix: 128×32
Drive IC: SSD1306Z
Viewing Angle: 160°
Aperture rate: 77%
Interface: 4 wire serial interface
Outline Dimension: 29.0(W)x8.7(H)x1.22(D)
View area: 22.856 (W) x 6.824(H)
PIN: 15
FPC Type: Connector
General Specification
ITEM | SPECIFICATIONS | UNIT |
MODULE SIZE | 29.0(W)x8.7(H)x1.22(D) | mm |
VIEWING AREA | 22.856 (W) x 6.824(H) | mm |
ACTIVE AREA | 21.356 (W) x5.324(H) | mm |
DOT SIZE | 0.147(W) x0.147(H) | mm |
DOT PITCH | 0.167(W) x0.167 (H) | mm |
ASSY.TYPE | COG | --- |
WEIGHT | TBD |
|
Interface Definition
PIN NO. | SYMBOL | TYPE | FUNCTION DESCRIPTIONS |
1 | C2N |
|
C1P/C1N-Pin for charge pump capacitor. C2P/C2N-Pin for charge pump capacitor. Connect to each other with a capacitor. They must be floated when the Charge pump not use. |
2 | C2P |
|
|
3 | C1P | O | |
4 | C1N |
|
|
5 | VBAT | P |
Power supply for charge pump regulator circuit. It must be connected to external source when charge pump is used. It must be floated when charge pump is not used. |
6 | VSS | P | Ground pin. It must be connected to external ground. |
7 | VDD | P | Power pin for logic circuit. It must be connected to external source. |
8 | CS# | I | Chip Select input pin. Active "L" |
9 | RES# | I | Hardware reset input pin. Active "L". |
10 | D/C# | I |
This pin is Data/Command control pin. When the pin is pulled HIGH, the data at D[7:0] is data. When the pin is pulled LOW, the data at D[7:0] is command. |
11 | SCLK | I/O | Serial interface clock wire |
12 | SDIN | I/O | Serial interface data wire |
13 | IREF | I |
Current reference for brightness adjustment. This is segment output current reference pin. When external IREF is used, A resistor should be connected between this pin and VSS . Set the current at 10 uA maximum. |
14 | VCOMH | O |
COM signal deselected voltage level. A capacitor should be connected between this pin and VSS. |
15 | VCC | P |
Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used. It must be connected to external source when charge pump is not used. |
