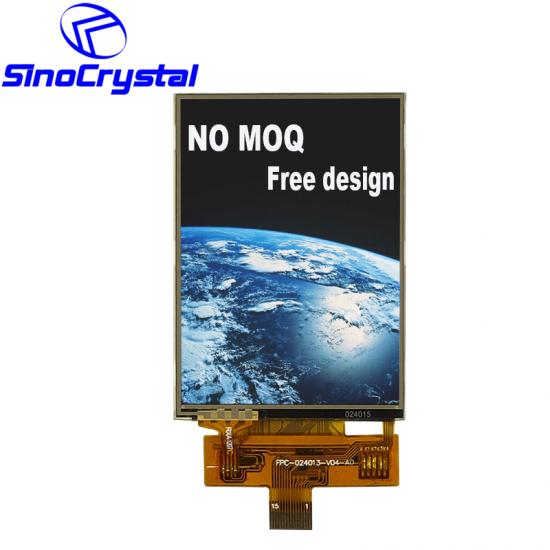

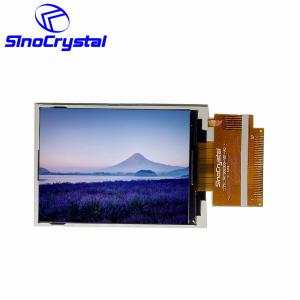

SCT024013-V04是一款2.4英寸TFT液晶显示器，分辨率240RGB*320，内置ILI9341V IC，支持3线SPI接口，15针，12点钟方向。
型号:
SCT024013-V04Size (inch)尺寸（英寸）:
2.4寸分辨率:
240*320外形尺寸（mm）:
42.72*60.26*2.30可视尺寸（mm）:
38.52*53.56视域尺寸（mm）:
36.72*48.96视角:
12接口:
3-line SPIIC型号:
ILI9341V亮度（cd/m m2）:
300触摸:
RTP温度 (℃):
-20°C~70°CBasic Information
Resolution: 240RGB*320
Outline Dimension: 47.72*60.26*2.40
Active Area: 36.72*48.96
View area: 40.32*56.26
Interface: 3-line SPI
Driver IC: HX8347I
View Direction: 12 o'clock
PIN: 15
Backlight: White LED
Touch Screen: RTP

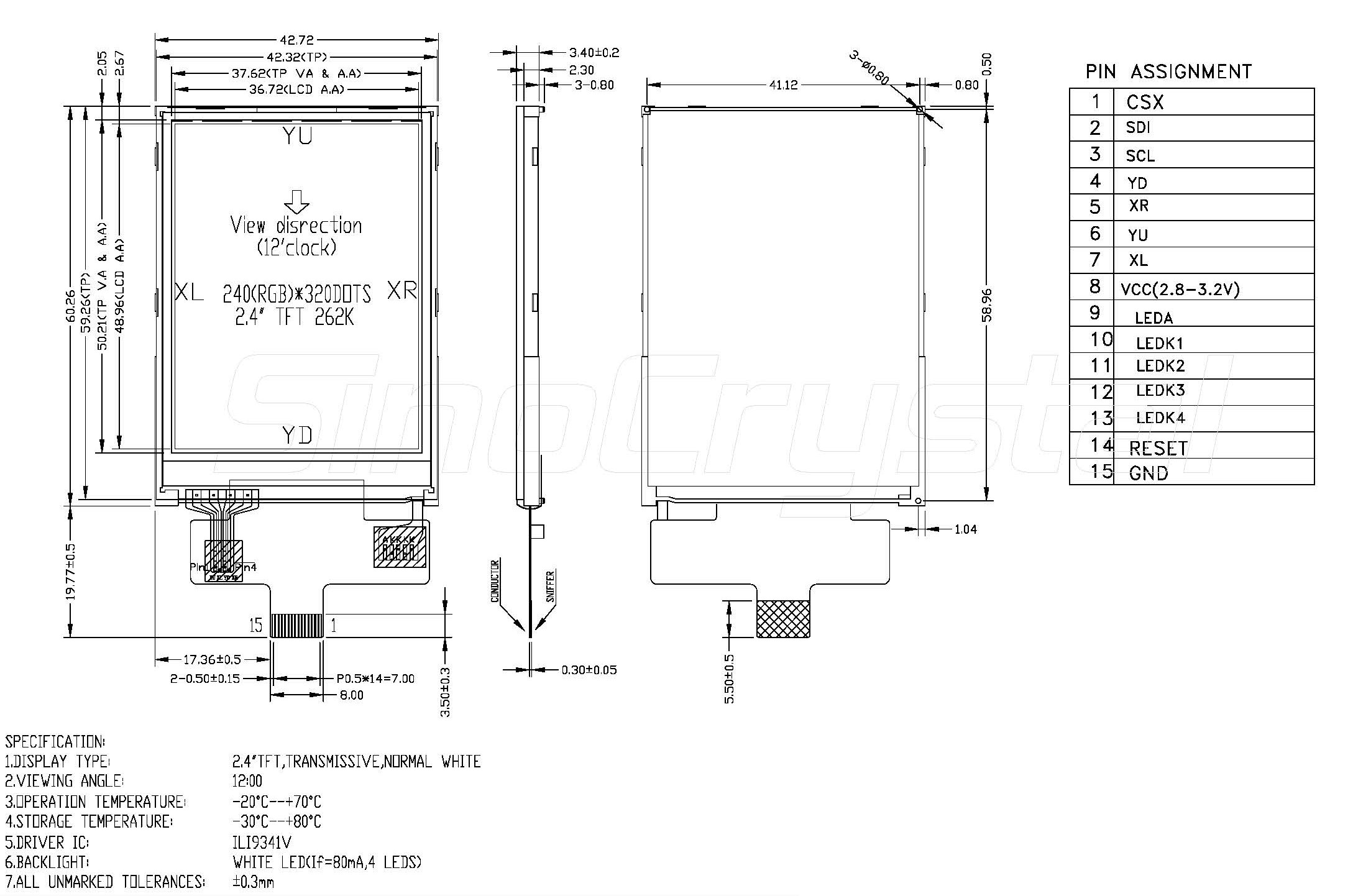

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 240 x RGB x 320 | Dots |
| Module Size ( W×H×T ) | 42.72 x 60.26 x 3.4 | mm. |
| Active Area ( W×H ) | 36.72 x 48.96 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface |
3-line SPI |
- |
| Drive IC | ILI9341V | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | TN/Normal White | - |
| Backlight Type | LED x 4 | PCS |
Interface Definition
| Pin No | Pin Symbol | Level | Description |
| 1 | CSX | 0V | Chip select |
| 2 | SDA | H/L | SPI data |
| 3 | SCL | H/L | SPI clock |
| 4 | YD | - | Touch panel bottom electrode |
| 5 | XR | - | Touch panel right electrode |
| 6 | YU | - | Touch panel top electrode |
| 7 | XL | - | Touch panel left electrode |
| 8 | VCC | 2.8-3.2V | Power supply |
| 9 | LEDA | - | LED light, anode |
| 10 | LEDK1 | - | LED light, cathode. |
| 11 | LEDK2 | - | LED light, cathode. |
| 12 | LEDK3 | - | LED light, cathode. |
| 13 | LEDK4 | - | LED light, cathode. |
| 14 | RESET | H/L | Reset signal |
