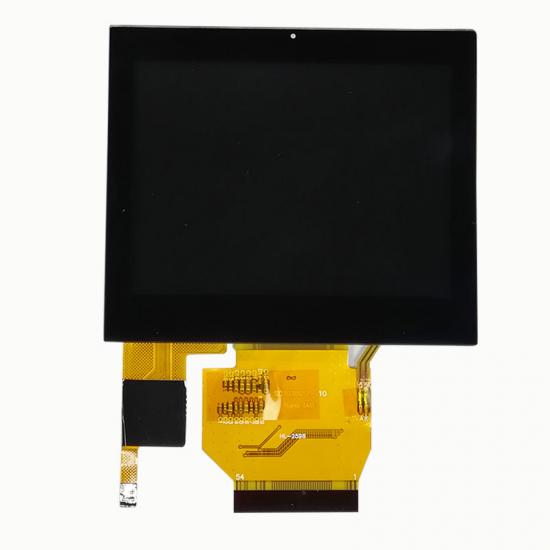

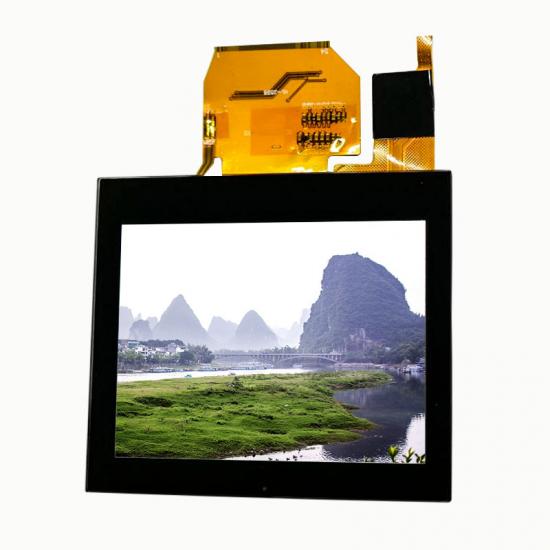

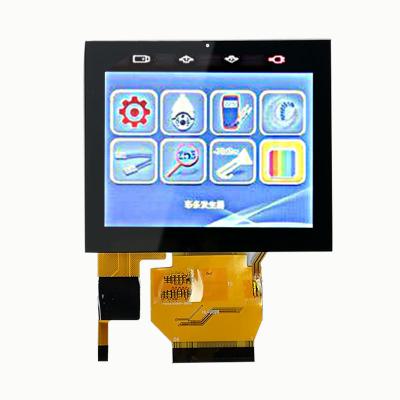

3.5英寸CTP触摸屏显示器，带320RGB*240 24位RGB，带串行接口HX8238 IC 54针

SCT035017-V01是一款分辨率为320RGB*240的3.5英寸CTP TFT液晶显示器，内置HX8238-D集成电路，支持24位RGB，带串行接口，54针，6点钟视角

型号:
SCT035017-V01
Size (inch)尺寸（英寸）:
3.5寸
分辨率:
320*240
外形尺寸（mm）:
76.90*63.90*6.05
可视尺寸（mm）:
-
视域尺寸（mm）:
70.08*52.56
视角:
6
接口:
SPI
IC型号:
HX8238-D
亮度（cd/m m2）:
300
触摸:
CTP
温度 (℃):
-20°C~70°C

立即查询

产品详细信息

Basic Information

Resolution: 320RGB*240

Outline Dimension: 76.90*63.90*6.05

Active Area: 70.08*52.56

Interface: 24bit RGB with Serial Interface

Driver IC: HX8238

View Direction: 6 o'clock

PIN: 54

Backlight: White LED

Touch Screen: Capacitive Touch Panel

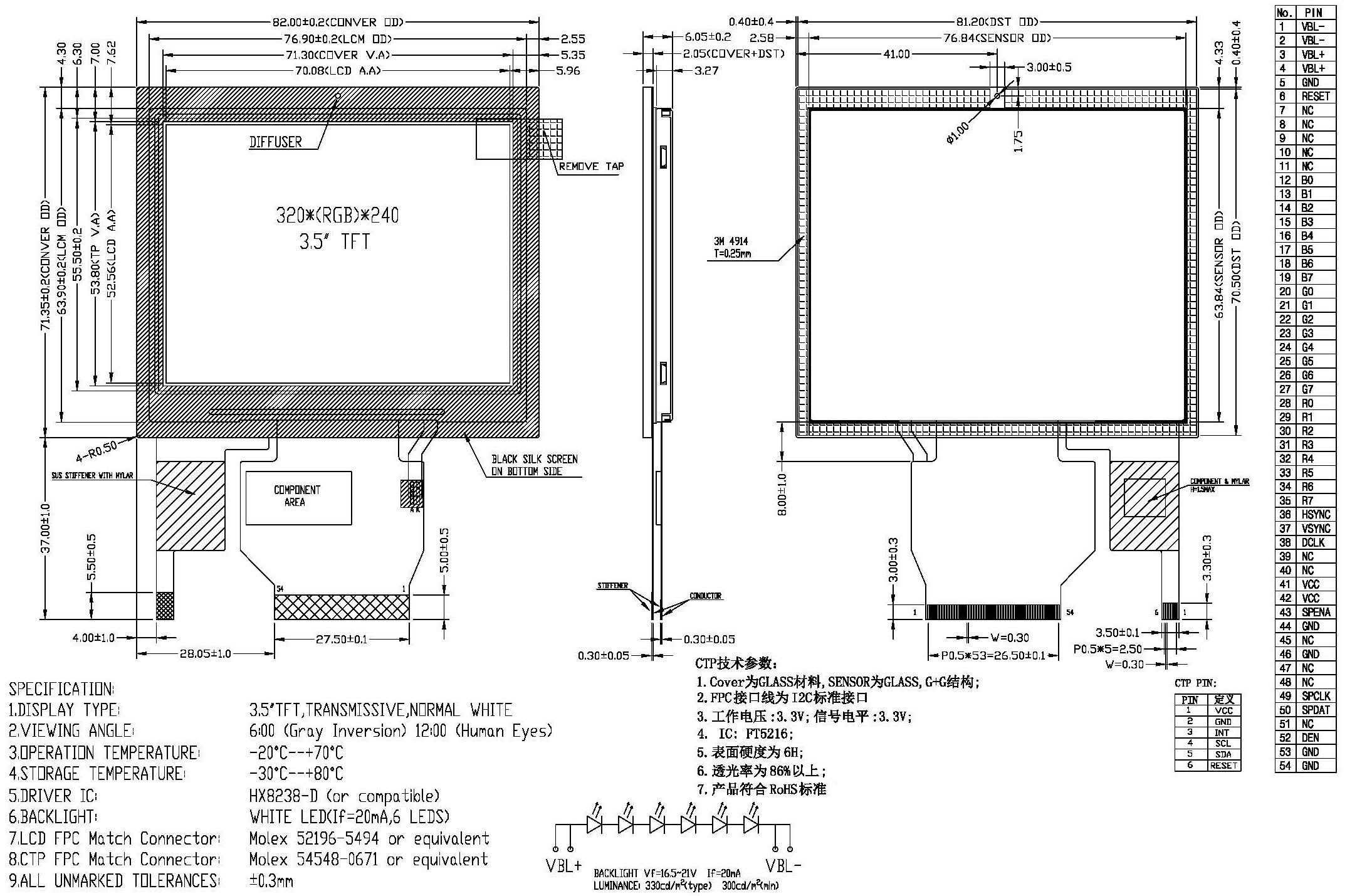

Drawing

General Specification

Item	Nominal Dimension	Unit
Dot Matrix	320 x RGB x 240	Dots
Module Size ( W×H×T )	76.9063.903.27	mm.
Active Area ( W×H )	70.08*52.56	mm.
Color depth	262K(MAX)	colors
Interface	24bit RGB with Serial Interface	-
Driving IC	HX8238-D	-
Operating temperature	-20 ~70	ºC
Storage temperature	-30~80	ºC
LCD Type	Active maritx TFT, Transmissive type	-
LCD Mode	TN / Normal White	-
Backlight Type	LED x 6	PCS

Interface Definition

Pin No	Pin Symbol	Level	Description
1	LED-	-	LED light, cathode
2	LED-	-	LED light, cathode
3	LED+	-	LED light, anode
4	LED+	-	LED light, anode
5	GND	0V	Ground
6	RESET	H/L	Reset signal
7	NC	-	Not use
8	NC	-	Not use
9	NC	-	Not use
10	NC	-	Not use
11	NC	-	Not use
12	B0	H/L	Blue Data
13	B1	H/L	Blue Data
14	B2	H/L	Blue Data
15	B3	H/L	Blue Data
16	B4	H/L	Blue Data
17	B5	H/L	Blue Data
18	B6	H/L	Blue Data
19	B7	H/L	Blue Data
20	G0	H/L	Green Data
21	G1	H/L	Green Data
22	G2	H/L	Green Data
23	G3	H/L	Green Data
24	G4	H/L	Green Data
25	G5	H/L	Green Data
26	G6	H/L	Green Data
27	G7	H/L	Green Data
28	R0	H/L	Red Data
29	R1	H/L	Red Data
30	R2	H/L	Red Data
31	R3	H/L	Red Data
32	R4	H/L	Red Data
33	R5	H/L	Red Data
34	R6	H/L	Red Data
35	R7	H/L	Red Data
36	HSYNC	H/L	Horizontal Sync Input
37	VSYNC	H/L	Vertical Sync Input
38	PCLK	H/L	Pixel Dot Data Clock
39	NC	-	Not use
40	NC	-	Not use
41	VCI	P	Power supply
42	VCI	P	Power supply
43	SPENA	H/L	SPI Interface Chip Select
44	GND	0V	Ground
45	NC	-	Not use
46	GND	0V	Ground
47	NC	-	Not use
48	NC	-	Not use
49	SPCLK	H/L	SPI Interface Data Clock
50	SPDAT	H/L	SPI Interface Data
51	NC	-	Not use
52	DE	H/L	Data Enable Input
53	GND	0V	Ground
54	GND	0V	Ground
