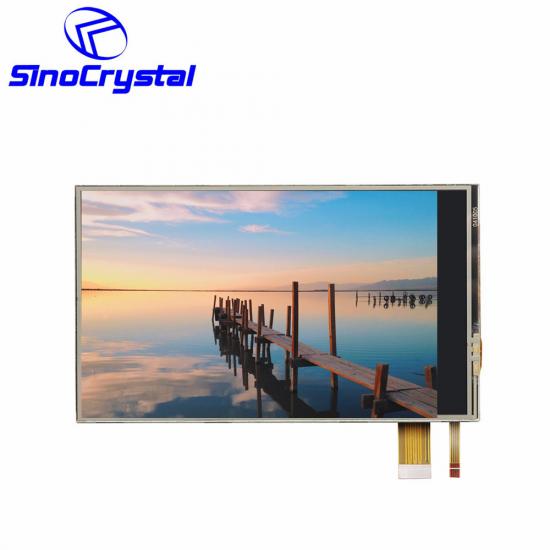

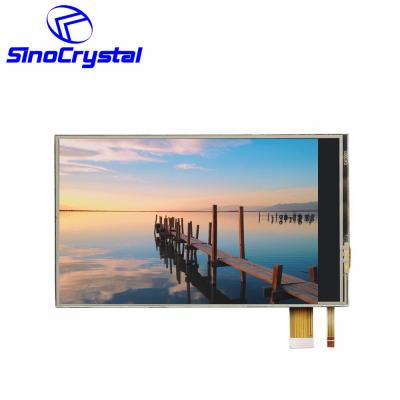

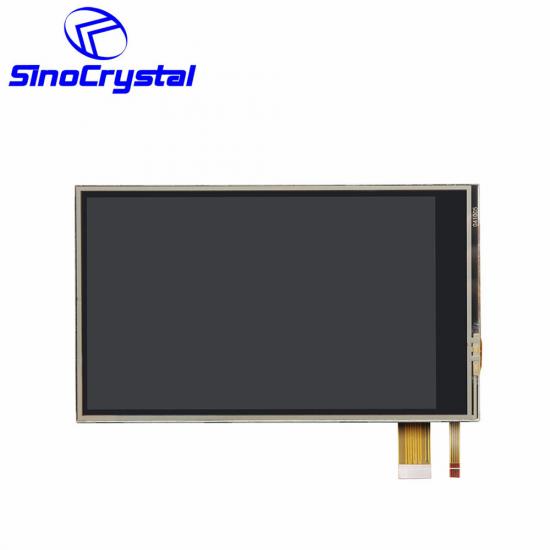

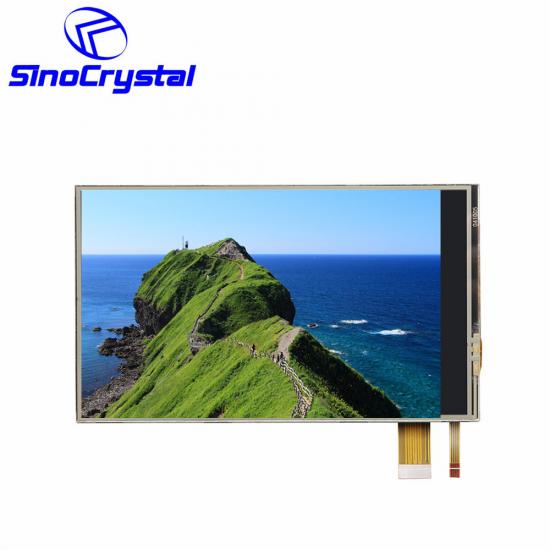

SCT040001-V02是一款4英寸IPS触摸屏TFT LCD显示屏，分辨率480RGB*800，内置ST7789V IC，支持IPC接口，25针
型号:
SCT040001-V02Size (inch)尺寸（英寸）:
4寸分辨率:
480*800外形尺寸（mm）:
56.94*97.10*1.16可视尺寸（mm）:
53.44*88.00视域尺寸（mm）:
51.84*86.40视角:
IPS接口:
IPCIC型号:
NT35510亮度（cd/m m2）:
300触摸:
RTP温度 (℃):
-20°C~70°CBasic Information
Resolution: 480RGB*800
Outline Dimension: 57.4*97.2*3.55
Active Area: 51.84*86.40
View area: 56.94*97.1
Interface: IPC
Driver IC: NT35510
View Direction: IPS
PIN: 25
Backlight: White LED
Touch Screen: Resistive Touch Screen

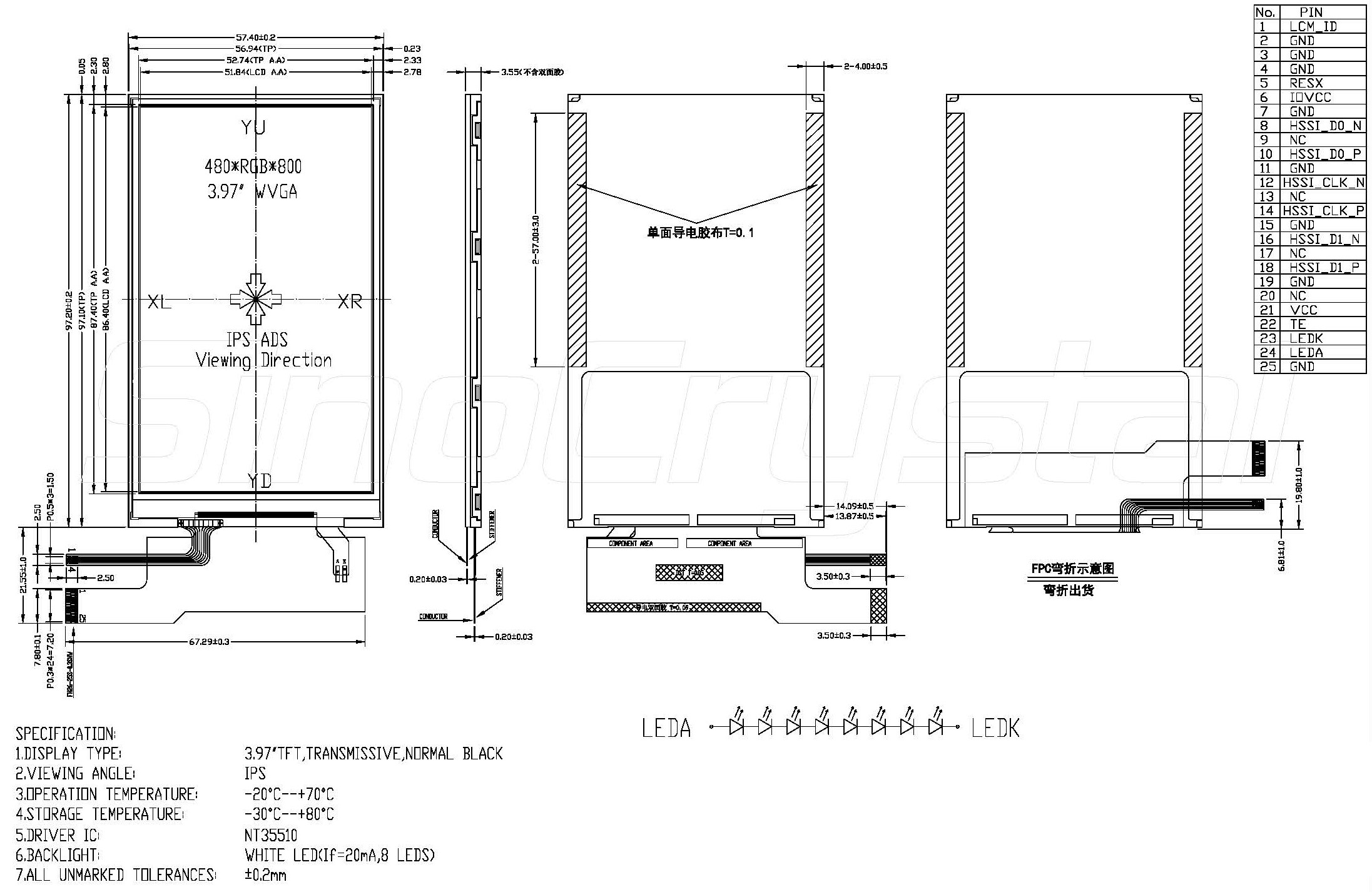

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 480 x RGB x 800 | Dots |
| Module Size ( W×H×T ) | 57.40 x 97.20 x 3.55 | mm. |
| Active Area ( W×H ) | 51.84 x 86.40 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.108 x 0.108 | mm. |
| Color depth | 16M | colors |
| Interface | MIPI DSI | - |
| Driving IC Package | COG | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | IPS | - |
| LCD Mode | Normal Black | - |
| Backlight Type | LED x 8 | PCS |
Interface Definition
| Pin No | Pin Symbol | Level | Description |
| 1 | LCM_ID | 0V | LCM ID, have been connected to GND in FPC. |
| 2 | GND | 0V | Ground |
| 3 | GND | 0V | Ground |
| 4 | GND | 0V | Ground |
| 5 | RESET | H/L | Reset signal |
| 6 | IOVCC | 1.65-3.3V | Power supply for logic |
| 7 | GND | 0V | Ground |
| 8 | HSSI_D0_N |
|
|
| 9 | NC |
|
These pins are DSI-D0+/- differential data signals if MIPI interface |
| 10 | HSSI_D0_P |
|
|
| 11 | GND | 0V | Ground |
| 12 | HSSI_CLK_N |
|
|
| 13 | NC |
|
These pins are DSI-CLK+/- differential clock signals if MIPI interface |
| 14 | HSSI_CLK_P |
|
|
| 15 | GND | 0V | Ground |
| 16 | HSSI_D1_N |
|
|
| 17 | NC |
|
These pins are DSI-D1+/- differential data signals if MIPI interface |
| 18 | HSSI_D1_P |
|
|
| 19 | GND | 0V | Ground |
| 20 | NC | - | No used |
| 21 | VCI | 2.3-4.8V | Power supply |
| 22 | TE | H/L | Tearing effect output |
| 23 | LEDK | - | LED light, cathode. |
| 24 | LEDA | - | LED light, anode |
| 25 | GND | 0V | Ground |
|
|
|
|
|
| Pin No | Pin Symbol | Level | Description |
| 1 | YU | - | Touch panel top |
| 2 | XL | - | Touch panel left |
| 3 | YD | - | Touch panel bottom |
| 4 | XR | - | Touch panel right |
