型号:
SC12864026-V30Resolution:
128*64Outline Dimension (mm):
56.4*36.8*5.5Viewing Area (mm):
51.0*23.8Interface:
-Driver IC:
ST7565RBacklight:
White LEDPIN:

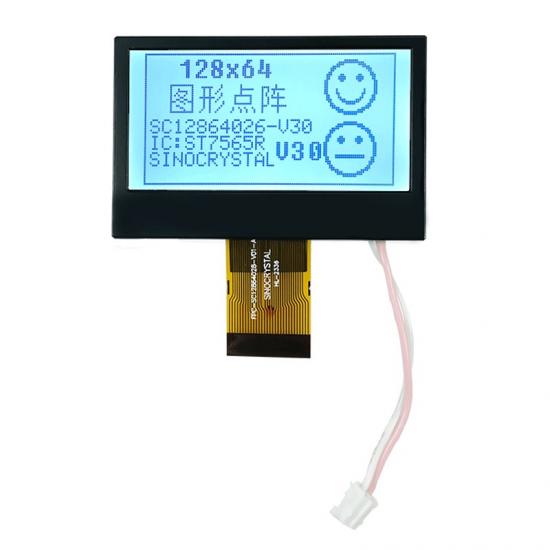

30SC12864026-V30 is a Graphic LCD Display with 128*64 resolution, it built in with ST7565R-G-1 IC, 30 PIN, 6 o'clock View direction.

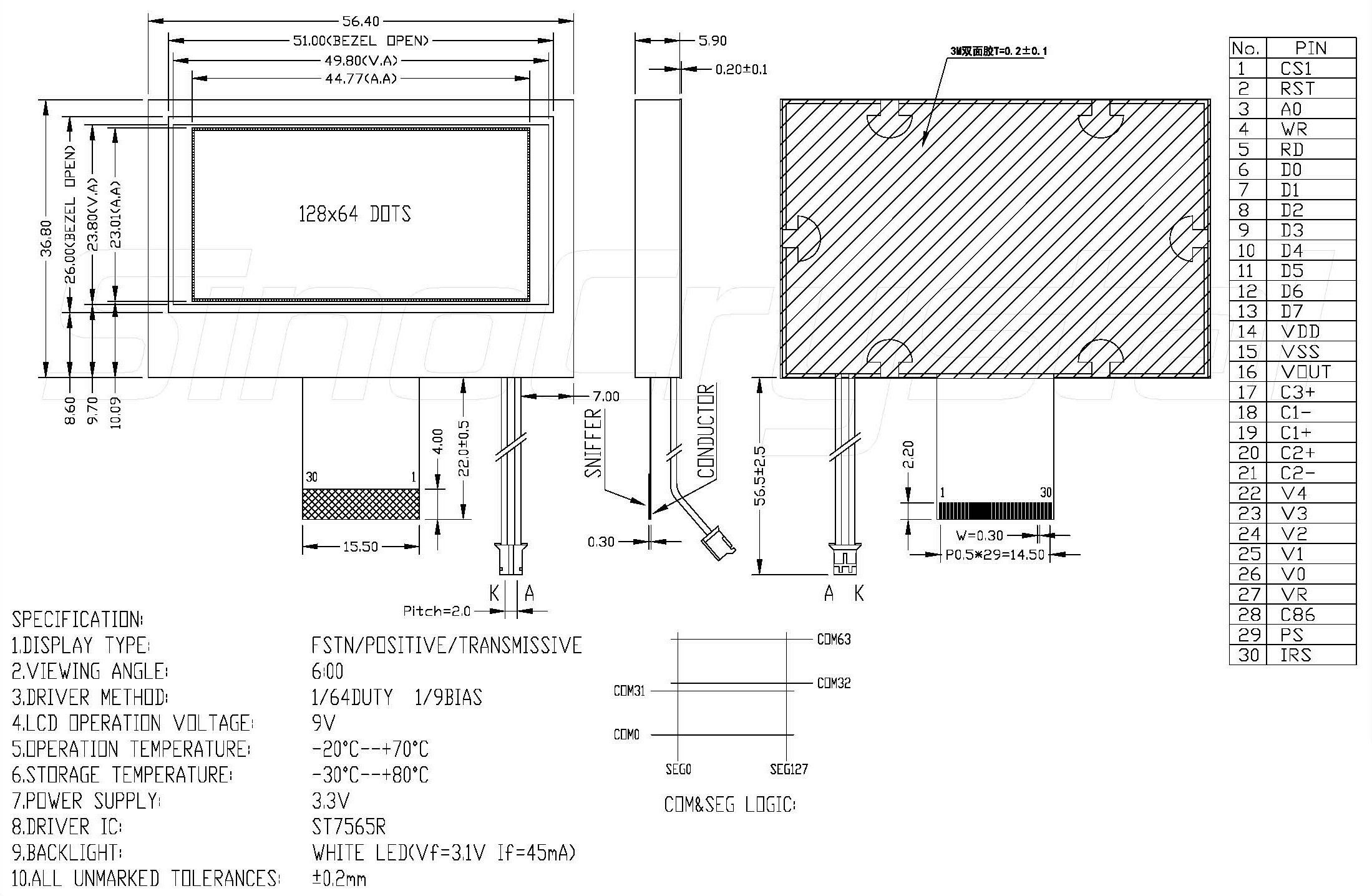

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF GRAPHIC | 128×64 | Mm |
| MODULE DIMENSION | 56.4×36.8×5.5 | Mm |
| VIEWING AREA | 51.0×23.8 | Mm |
| DOT SIZE | 0.32×0.33 | Mm |
| DOT PITCH | 0.35×0.36 | Mm |
| LCD TYPE | FSTN/ POSITIVE/TRANSMISSIVE |
|
| DUTY | 1/64 |
|
| VIEWING DIRECTION | 0.25 | o'clock |
| BACK LIGHT TYPE | SIDE LIT LED |
|
| BACK LIGHT COLOR | WHITE |
|
| APPROX. WEIGHT | TBD | G |
Interface Definition
| Pin No. | Symbol | Level | Description |
| 1 | CS1 | H/L | Chip select signal |
| 2 | RST | H/L | Chip reset signal |
| 3 | A0 | H/L |
Register selection input H : Indicate that D0 to D7 are display data. L:Indicate that D0 to D7 are control data |
| 4 | WR(R/W) | H/L |
8080 series: Write signal 6800 series: Read or Write signal |
| 5 | RD(E) | H/L |
8080 series: Read signal 6800 series: Enable signal |
| 6--13 |
D0-D5 D6(SCL) D7(SI) |
H/L |
This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus. When the serial interface (SPI-4) is selected (P/S = "L") : D7 : serial data input (SI) ; D6 : the serial clock input (SCL). D0 to D5 should be connected to VDD or floating. |
| 14 | VDD | -- | Supply voltage for logic |
| 15 | VSS | -- | Ground |
| 16 | VOUT | -- | Power for LCD |
| 17 | C3+ | -- |
DC/DC voltage converter. Connect a capacitor between this terminal and the CAP1N terminal. |
| 18 | C1- | -- |
DC/DC voltage converter. Connect a capacitor between this terminal and the CAP1P terminal. |
| 19 | C1+ | -- |
DC/DC voltage converter. Connect a capacitor between this terminal and the CAP1N terminal. Reset signal. |
| 20 | C2+ | -- |
DC/DC voltage converter. Connect a capacitor between this terminal and the CAP2N terminal. |
| 21 | C2- | -- |
DC/DC voltage converter. Connect a capacitor between this terminal and the CAP2P terminal. Chip select. |
| 22-26 | V4-V0 | -- | This is a multi-level power supply for the liquid crystal drive. |
| 27 | VR | -- | Contrast adjustment input. |
| 28 | C86 | H/L |
C86 = "H": 6800 Series MPU interface. C86 = "L": 8080 Series MPU interface. |
| 29 | PS | H/L |
P/S = "H": Parallel interface P/S = "L": Serial interface |
| 30 | IRS | H/L |
RS = "H": Use the internal resistors IRS = "L": Do not use the internal resistors. |
