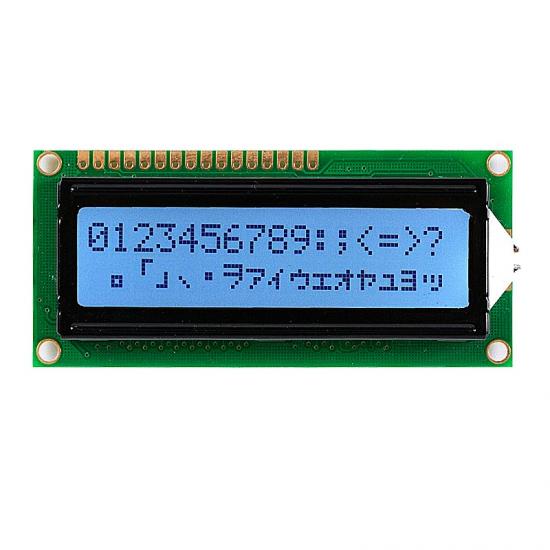

SC1602002-V01是一款16*2分辨率的字符液晶显示器，内置AIP31066芯片，内置8位MPU接口，16针，6点钟视角。
型号:
SC1602002-V01Resolution:
16*2Outline Dimension (mm):
80*36*11.8Viewing Area (mm):
64.3*16Interface:
8-bit MPU interfaceDriver IC:
AIP31066Backlight:
WhitePIN:
16Basic Information
LCD Type: STN/NEGATIVE(BLUE)//TRANSMISSIVE
Resolution: 16*2
Outline Dimension: 80(L) * 36(W) * 11.8(T)
View area: 64.3(L) * 16( W)
Driver IC: AIP31066
View Direction: 6 o'clock
PIN: 16
Backlight: Yellow-Green LED
General Specification
Item
Standard Value
Unit
Display Type
16 Characters x 2 Lines
Mm
LCD Type
STN,NEGATIVE(BLUE),TRANSMISSIVE
Mm
Driver Condition
LCD Module : 1/16 Duty , 1/5 Bias
Mm
Viewing Direction
6 O'Clock
Mm
Backlight Type
SIDE WHIET
Mm
Interface
8-bit MPU interface
-
Driver IC
AIP31066
-
Outline Dimension
80(L) * 36(W) * 11.8(T)
mm
Viewing Area
64.3(L) * 16( W)
mm
Dot size
0.56(W) ´ 0.61(H)
mm
Dot pitch
0.6(W) ´ 0.65(H)
mm
Character size
2.96(W) ´ 5.16(H)
mm
Interface Definition
Pin No.
Symbol
Function
1
VSS
Ground (0V)
2
VDD
Supply Voltage for Logic (+5.0V )
3
VO
Contrast Adjustment
4
RS
Data/Instruction Select
5
R/W
Read/Write Select
6
E
Enable Signal
7
DB0
Data Bus
8
DB1
Data Bus
9
DB2
Data Bus
10
DB3
Data Bus
11
DB4
Data Bus
12
DB5
Data Bus
13
DB6
Data Bus
14
DB7
Data Bus
15
LED_A
LED Power Supply + (5.0V)
16
LED_K
LED Power Supply - (0V)
