SC1602013-V01是一款16*2分辨率的字符液晶显示器，内置ST7032-0D IC，15针，6点钟视角。
型号:
SC16020013-V01Resolution:
16*2Outline Dimension (mm):
65.0*27.7*2.8Viewing Area (mm):
61.0*10.8Interface:
-Driver IC:
ST7032-0DBacklight:
No BacklightPIN:
15Basic Information
Resolution: 16*2
Outline Dimension: 65.00*27.70*2.80
View area: 61*15.7
View Direction: 6 o'clock
PIN: 15
Backlight: No backlight

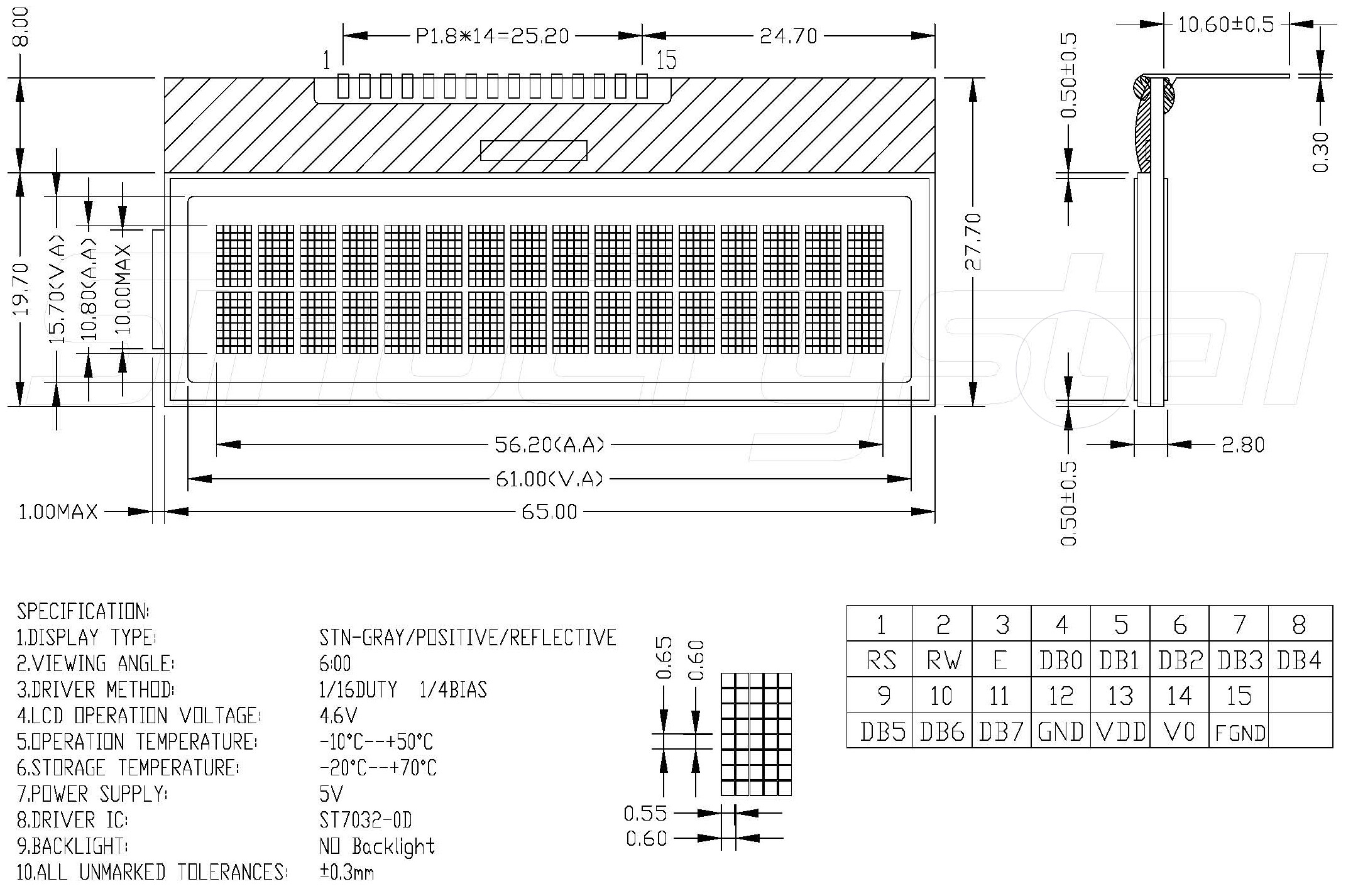

Drawing
General Specification
| ITEM | STANDARD VALUE | UNIT |
| NUMBER OF CHARACTER | 16×2 | Mm |
| MODULE DIMENSION | 65.0×27.7×10.6(MAX) | Mm |
| VIEWING AREA | 61.0×15.7 | Mm |
| DOT SIZE | 0.55×0.65 | Mm |
| DOT PITCH | 0.60×0.65 | Mm |
| LCD TYPE | STN/GRAY/POSITIVE/REFLECTIVE |
|
| DUTY | 1/16 |
|
| VIEWING DIRECTION | 6:00 | o'clock |
| BACK LIGHT TYPE/BACK LIGHT COLOR | NO BACKLIGHT |
|
| APPROX. WEIGHT | TBD | G |
Interface Definition
| Pin No. | Symbol | Level | Description |
| 1 | RS | H/L |
Register selection input H : Indicate that DB0 to DB7 are display data. L : Indicate that DB0 to DB7 are control data |
| 2 | RW | H/L |
Read or Write signal 0 : Write 1 : Read |
| 3 | E | H/L | Enable signal |
| 4--11 | DB0-DB7 | H/L | 8-bit bi-directional data bus |
| 12 | GND | -- | Gound |
| 13 | VDD | -- | Supply voltage for logic |
| 14 | V0 | -- | Supply voltage for LCD |
| 15 | FGND | -- | Frame Ground |
