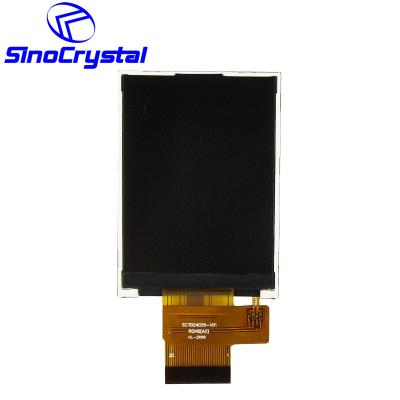

SCT024019-V01是一款2.4英寸IPS TFT液晶显示器，分辨率240RGB*320，内置ST7789V IC，支持SPI&RGB接口，34针，全视角。
型号:
SCT024026-V01Size (inch)尺寸（英寸）:
2.4寸分辨率:
240*320外形尺寸（mm）:
42.52*60.50*2.2可视尺寸（mm）:
-视域尺寸（mm）:
36.72*48.96视角:
IPS接口:
SPI & RGBIC型号:
ST7789V亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 240RGB*320
Outline Dimension: 47.72*60.26*2.40
Active Area: 36.72*48.96
View area: 40.32*56.26
Interface: SPI & RGB
Driver IC: ST7789V
View Direction: IPS
PIN: 34
Backlight: White LED
Touch Screen: No touch screen for standard. If you need touch, click for a inquiry.
Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 240 x RGB x 320 | Dots |
| Module Size ( W×H×T ) | 42.52 x 60.50 x 2.20 | mm. |
| Active Area ( W×H ) | 36.72 x 48.96 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | SPI & RGB | - |
| Driving IC Package | COG | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | Normal Black | - |
| Backlight Type | LED x 4 | PCS |
Interface Definition
PIN3-5:
Pin No
Pin Symbol
Level
Description
1
GND
0V
Ground
2
VCC
2.4-3.3V
Power supply
3
IM2
H/L
IM3 has been connected to GND
4
IM1
H/L
5
IM0
H/L
6
/RESET
H/L
Chip reset signal
7
CS
H/L
Chip selection signal
8
SCL
H/L
Serial Clock signal
H/L
Display data/command selection pin in 4-line serial interface.
9
RS
Second Data lane in 2 data lane serial interface.
10
VSYNC
H/L
Vertical (Frame) synchronizing input signal
11
HSYNC
H/L
Horizontal (Line) synchronizing input signal
12
ENABLE
H/L
Data enable signal
13
DOTCLK
H/L
Dot clock signal
14
SDA
H/L
Serial data input/output pin
15-32
DB0-DB17
H/L
RGB interface data bus
33
LEDA
-
LED light, anode
34
LEDK
-
LED light, cathode.
