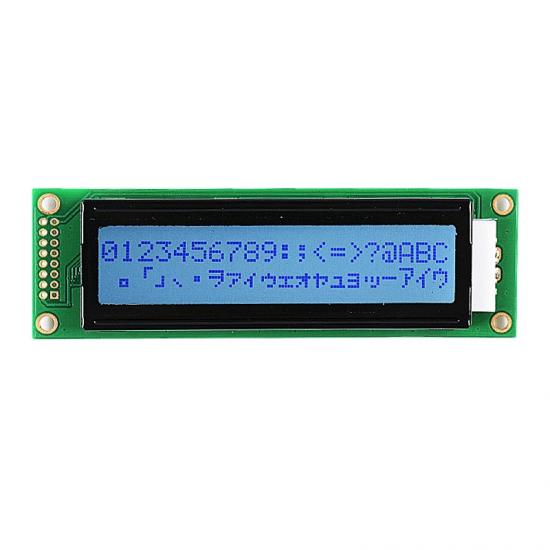

SC2002001-V01是一款20*2分辨率的字符液晶显示器，内置AIP31066集成电路，16针，6点钟视角。
型号:
SC2002001-V01Resolution:
20*2Outline Dimension (mm):
116*37*13.2Viewing Area (mm):
85*18.6Interface:
8bit MPU interfaceDriver IC:
AIP31066Backlight:
WhitePIN:
16
Basic Information
Resolution: 20*2
Outline Dimension: 116*37*13.2
View area: 85*18.6
View Direction: 6 o'clock
PIN: 16
Backlight: White LED
General Specification
| Item | Standard Value | Unit |
| Display Type | 20 Characters x 2 Lines | Mm |
| LCD Type | STN,NEGATIVE(BLUE),TRANSMISSIVE | Mm |
| Driver Condition | LCD Module : 1/16 Duty , 1/5 Bias | Mm |
| Viewing Direction | 6 O'Clock | Mm |
| Backlight Type | SIDE WHITE | Mm |
| Interface | 8-bit MPU interface | - |
| Driver IC | AIP31066 | - |
| Outline Dimension | 116(L) * 37(W) * Max 13.2(T) | mm |
| Viewing Area | 85(L) * 18.6( W) | mm |
| Dot size | 0.61(W) ´ 0.63(H) | mm |
| Dot pitch | 0.66(W) ´ 0.69 (H) | mm |
| Character size | 3.25(W) ´ 5.39(H) | mm |
Interface Definition
| No. | Symbol | Function | |
| 1 | VSS | Ground (0V) | |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) | |
| 3 | VO | Contrast Adjustment | |
| 4 | RS | Data/Instruction Select | |
| 5 | R/W | Read/Write Select | |
| 6 | E | Enable Signal | |
| 7--14 | DB0-DB7 | Data Bus | |
| 15 | LED_A | LED Power Supply + (5.0V) | |
| 16 | LED_K | LED Power Supply - (0V) | |
