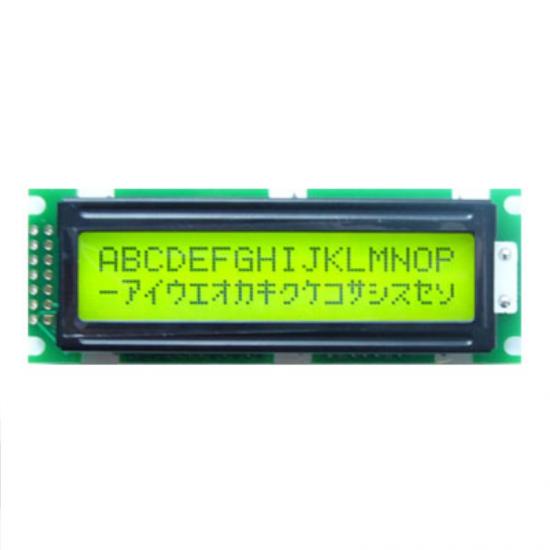

SC1602004-V01是一款16*2分辨率的字符液晶显示器，内置AIP31066芯片，支持8位MPU接口，16针，6点钟方向显示。
型号:
SC1602004-V01Resolution:
16*2Outline Dimension (mm):
85*30*11.8Viewing Area (mm):
64.3*16Interface:
8bit MPU interfaceDriver IC:
AIP31066Backlight:
Yellow-Green LEDPIN:
16Basic Information
LCD Type: STN/Y-G/Positive/Transflective
Resolution: 16*2
Outline Dimension: 85(L) * 30(W) * 11.8(T)
View area: 64.3(L) * 16( W)
Driver IC: AIP31066
Interface: 8-bit MPU interface
View Direction: 6 o'clock
PIN: 16
Backlight: Yellow-Green LED
Drawing
General Specification
| Item | Standard Value | Unit |
| Display Type | 16 Characters x 2 Lines | Mm |
| LCD Type | STN,POSITIVE(Y-G),TRANSFLECTIVE | Mm |
| Driver Condition |
LCD Module : 1/16 Duty , 1/5 Bias |
Mm |
| Viewing Direction | 6 O'Clock | Mm |
| Backlight Type | SIDE Y-G | Mm |
| Interface | 8-bit MPU interface | - |
| Driver IC | AIP31066 | - |
| Outline Dimension | 85(L) * 30(W) * 11.8(T) | mm |
| Viewing Area | 64.3(L) * 16( W) | mm |
| Dot size | 0.56(W) ´ 0.61(H) | mm |
| Dot pitch | 0.6(W) ´ 0.65(H) | mm |
| Character size | 2.96(W) ´ 5.16(H) | mm |
Interface Definition
| Pin No. | Symbol | Function |
| 1 | VSS | Ground (0V) |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/Instruction Select |
| 5 | R/W | Read/Write Select |
| 6 | E | Enable Signal |
| 7 | DB0 | Data Bus |
| 8 | DB1 | Data Bus |
| 9 | DB2 | Data Bus |
| 10 | DB3 | Data Bus |
| 11 | DB4 | Data Bus |
| 12 | DB5 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB7 | Data Bus |
| 15 | LED_A | LED Power Supply + (5.0V) |
| 16 | LED_K | LED Power Supply - (0V) |
