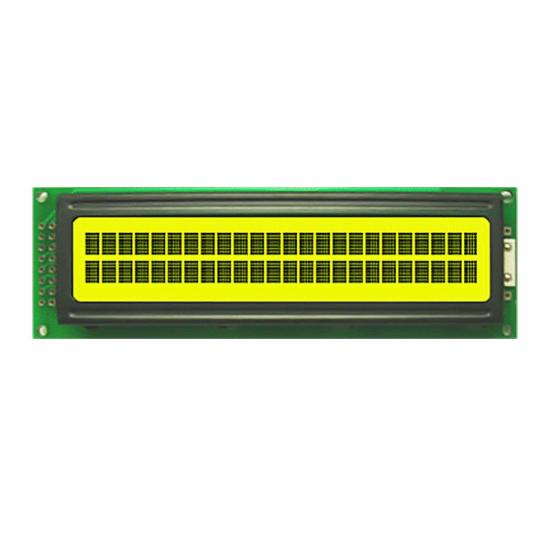

SC2402001-V01是一款24*2分辨率的字符液晶显示器，内置AIP31066集成电路，16针，6点钟视角。
型号:
SC2402001-V01Resolution:
24*2Outline Dimension (mm):
118*36*13.1Viewing Area (mm):
94.5*17.8Interface:
8bit MPU interfaceDriver IC:
AIP31066Backlight:
WhitePIN:
16
Basic Information
Resolution: 24*2
Outline Dimension: 118*36*13.1
View area: 94.5*17.8
Interface: 8bit MPU interface
Driver IC: AIP31066
View Direction: 6 o'clock
PIN: 16
Backlight: SIDE Y G
General Specification
| Item | Standard Value | Unit |
| Display Type | 24 Characters x 2 Lines | Mm |
| LCD Type | STN,POSITIVE(Y-G),TRANSFLECTIVE | Mm |
| Driver Condition | LCD Module : 1/16 Duty , 1/5 Bias | Mm |
| Viewing Direction | 6 O'Clock | Mm |
| Backlight Type | SIDE Y-G | Mm |
| Interface | 8-bit MPU interface | - |
| Driver IC | AIP31066 | - |
| Outline Dimension | 118(L) * 36(W) * Max 13.1(T) | mm |
| Viewing Area | 94.5(L) * 17.8( W) | mm |
| Dot size | 0.60(W) ´ 0.65(H) | mm |
| Dot pitch | 0.65(W) ´ 0.70 (H) | mm |
| Character size | 3.20(W) ´ 5.55(H) | mm |
Interface Definition
| No. | Symbol | Function | |
| 1 | VSS | Ground (0V) | |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) | |
| 3 | VO | Contrast Adjustment | |
| 4 | RS | Data/Instruction Select | |
| 5 | R/W | Read/Write Select | |
| 6 | E | Enable Signal | |
| 7--14 | DB0-DB7 | Data Bus | |
| 15 | LED_A | LED Power Supply + (5.0V) | |
| 16 | LED_K | LED Power Supply - (0V) | |
