0.96英寸128×64 OLED，带SSD1315Z IC，30针，3/4线串行接口，I2C

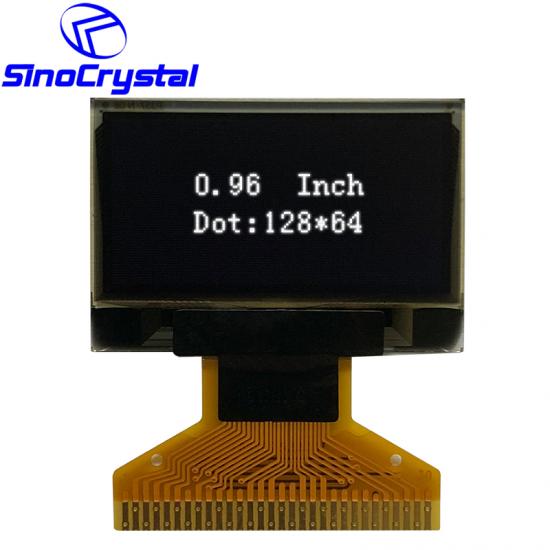

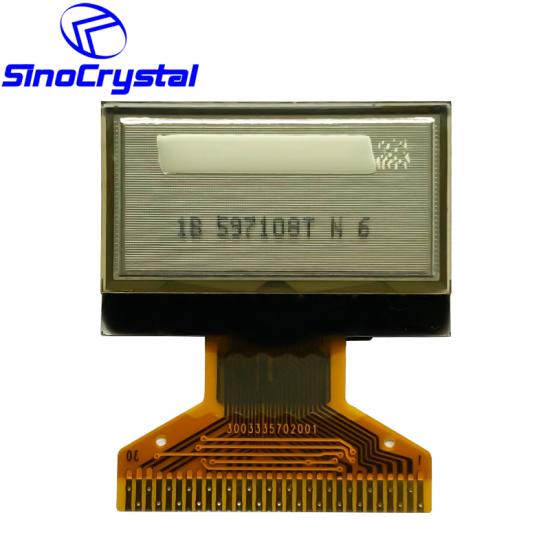

SCE096009-V01是一个COG型的OLED显示器，128×64分辨率，SSD1315Z集成电路，3/4线串行接口，I2C，30针

型号:
SCE096009-V01
Size (inch)尺寸（英寸）:
0.96寸
Resolution:
128×64
Outline Dimension (mm):
24.74x16.90x1.42
Viewing Area (mm):
22.74x11.86
Active Area (mm):
21.74x10.86
Interface:
I2C// 3/4-wire SPI
IC Part No.:
SSD1315Z
Color:
Monochrome (White)
PIN:
30
FPC type:
Soldering

立即查询

产品详细信息

Basic Information

Display Color:               White
Dot Matrix:                    128×64
Drive IC:                        SSD1315Z
Viewing Angle:              160°
Aperture rate:    78%
Interface:                       3/4wire serial interface, I2C
Outline Dimension:        24.74(W)x16.9(H)x1.42(D)
View area:                      22.74 (W) x 11.86(H)
PIN:                                30
FPC Type:                      Soldering

Drawing

General Specification

ITEM	SPECIFICATIONS	UNIT
MODULE SIZE	24.74(W)x16.9(H)x1.42(D)	mm
VIEWING AREA	22.74 (W) x 11.86(H)	mm
ACTIVE AREA	21.74 (W) x10.86(H)	mm
DOT SIZE	0.15(W) x0.15(H)	mm
DOT PITCH	0.17(W) x0.17 (H)	mm
ASSY.TYPE	COG	---
WEIGHT	TBD

Interface Definition

PIN NO.	SYMBOL	TYPE	FUNCTION DESCRIPTIONS
1	NC(GND)	P	It should be connected to external ground.
2	C2P		C1P/C1N-Pin for charge pump capacitor. C2P/C2N-Pin for charge pump capacitor. Connect to each other with a capacitor. They must be floated when the Charge pump not use.
3	C2N
4	C1P	I
5	C1N
6	VBAT	P	Power supply for charge pump regulator circuit. It must be connected to external source when charge pump is used. It must be float when charge pump is not used.
7	NC		NC
8	VSS	P	Ground pin. It must be connected to external ground.
9	VDD	P	Power pin for logic circuit. It must be connected to external source.
10	BS0	I	Interface selection pins.
11	BS1	I	Interface selection pins.
12	NC		NC.
13	CS#	I	Chip Select input pin. Active "L"
14	RES#	I	Hardware reset input pin. Active "L".
15	D/C#	I	This is Data/Command control pin. When the pin is pulled HIGH, the data at D[7:0] is data. When the pin is pulled LOW, the data at D[7:0] is command. In I2C mode, this pin acts as SA0 for slave address section. When 3-wire serial interface is selected, this pin must be connected to VSS
16	NC		NC.
17	NC		NC.
18	D0	I/O	When serial interface mode is selected,D2 should be either tied LOW or tied together with D1 as the serial data input: SDIN, and D0 will be the serial clock input: SCLK. When I2C mode is selected, D2, D1 should be tied together and serve as SDA and D0 is the serial clock input, SCL.
19	D1
20	D2
22	NC		NC.
23	NC		NC.
24	NC		NC.
25	NC		NC.
26	IREF	I	Current reference for brightness adjustment. This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum.
27	VCOMH	O	COM signal deselected voltage level. A capacitor should be connected between this pin and VSS.
28	VCC	P	Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used. It must be connected to external source when charge pump is not used.
29	VLSS	P	This is an analog ground pin. It should be connected to VSS externally.
30	NC(GND)	P	It should be connected to external ground.
