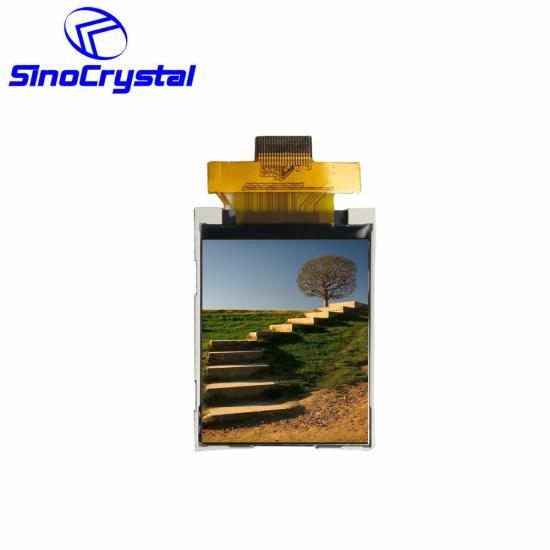

SCT018001-V01是彩色TFT 128x160液晶显示模块，对角线尺寸1.77英寸。该模块内置ST7735S-G4芯片，支持8位MCU接口。最佳可视角度为12点钟方向。
型号:
SCT018001-V01Size (inch)尺寸（英寸）:
1.8寸分辨率:
128*160外形尺寸（mm）:
34.00*45.83*2.75可视尺寸（mm）:
31.832*41.420视域尺寸（mm）:
28.032*35.040视角:
12接口:
8bit MCUIC型号:
ST7735S亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 128x160
Outline Dimension: 34.00*45.83*2.75
Active Area: 28.032*35.040
View area: 31.832*41.420
Interface: 8bit MCU
Driver IC: ST7735S-G4
View Direction: 12 o'clock
PIN: 20
Backlight: White LED
Touch Screen: No touch screen for standard. If you need touch, click for a inquiry

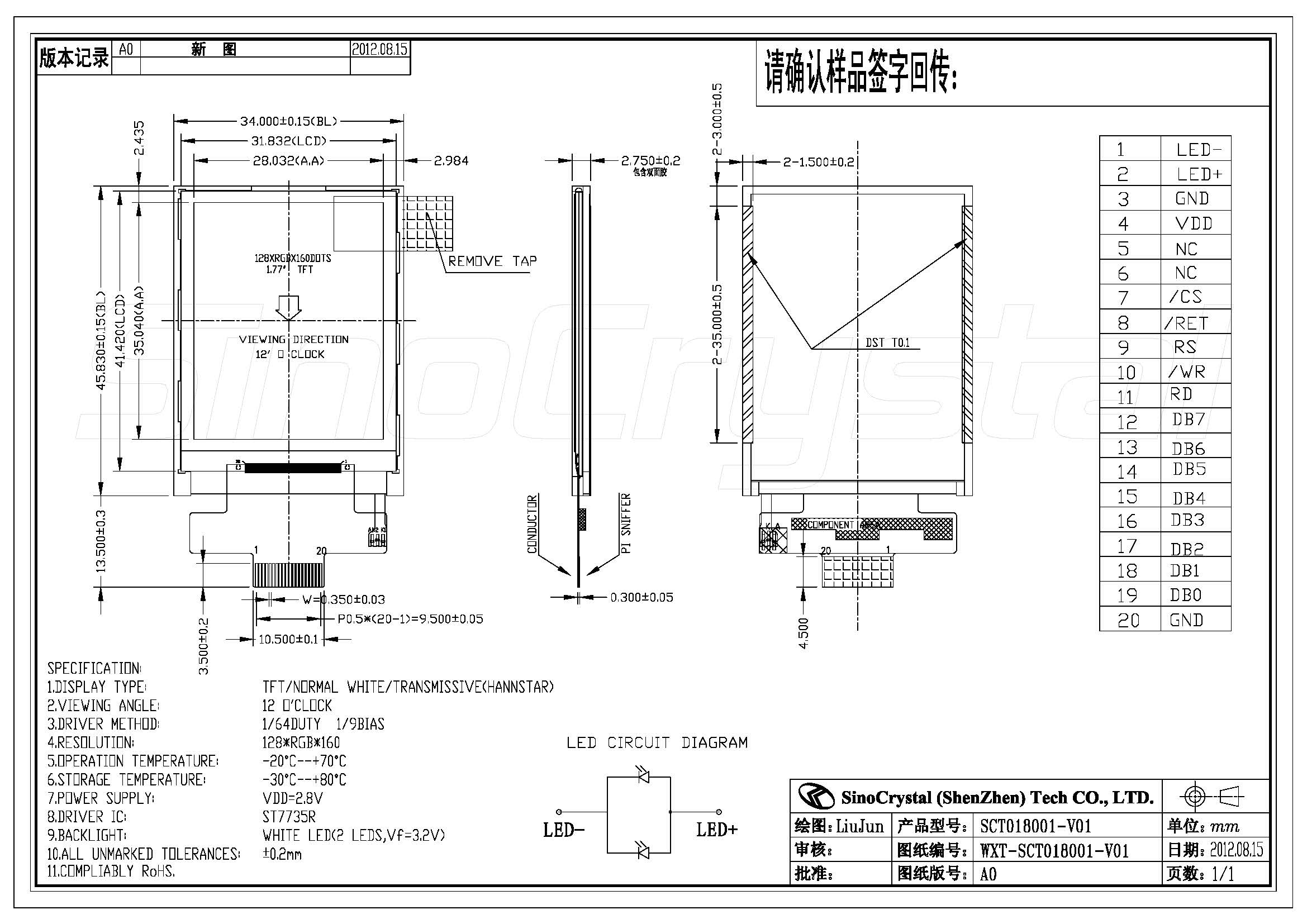

Drawing
General Specification
Item
Nominal Dimension
Unit
Dot Matrix
128 x RGB x 160
Dots
Module Size ( W×H×T )
34.0 x 45.83 x 2.75(max)
mm.
Active Area ( W×H )
28.032 x 35.040
mm.
Pixel arrangement
RGB Stripe
mm.
Dot Pitch ( W×H )
0.219 x 0.219
mm.
Color depth
262K(MAX)
colors
Interface
8 bit MCU
-
Driving IC Package
COG
-
Operating temperature
-20 ~70
ºC
Storage temperature
-30~80
ºC
LCD Type
a-Si TFT
-
LCD Mode
TN/Normal White
-
Backlight Type
LED x 2
PCS
Interface Definition
Pin No
Pin Symbol
Level
Description
1
LED-
-
LED light, cathode.
2
LED+
-
LED light, anode
3
GND
0V
Ground
4
VDD
2.3-3.6V
Power supply
5
NC
-
Dummy
6
NC
-
Dummy
7
/CS
H/L
Chip Select signal
8
/RESET
H/L
Chip reset signal
9
RS
H/L
Register select signal. 0:index register; 1: data register
10
/WR
H/L
Write signal
11
/RD
H/L
Read signal
12
DB7
H/L
data bus 7
13
DB6
H/L
data bus 6
14
DB5
H/L
data bus 5
15
DB4
H/L
data bus 4
16
DB3
H/L
data bus 3
17
DB2
H/L
data bus 2
18
DB1
H/L
data bus 1
19
DB0
H/L
data bus 0
20
GND
0V
Ground
