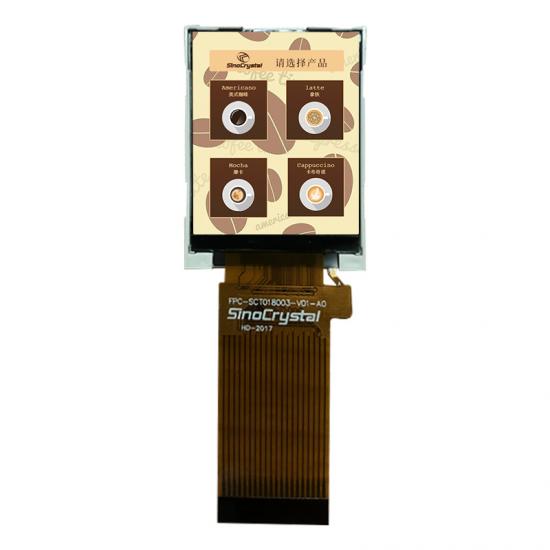

型号:
SCT018003-V01Size (inch)尺寸（英寸）:
1.8寸分辨率:
128*160外形尺寸（mm）:
34.00*45.83*2.60可视尺寸（mm）:
31.832*41.420视域尺寸（mm）:
28.032*35.040视角:
12接口:
8bit MCUIC型号:
ST7735S亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 128x160
Outline Dimension: 34.00*45.83*2.75
Active Area: 28.032*35.040
View area: 31.832*41.420
Interface: 8bit MCU
Driver IC: ST7735S
View Direction: 12 o'clock
PIN: 20
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

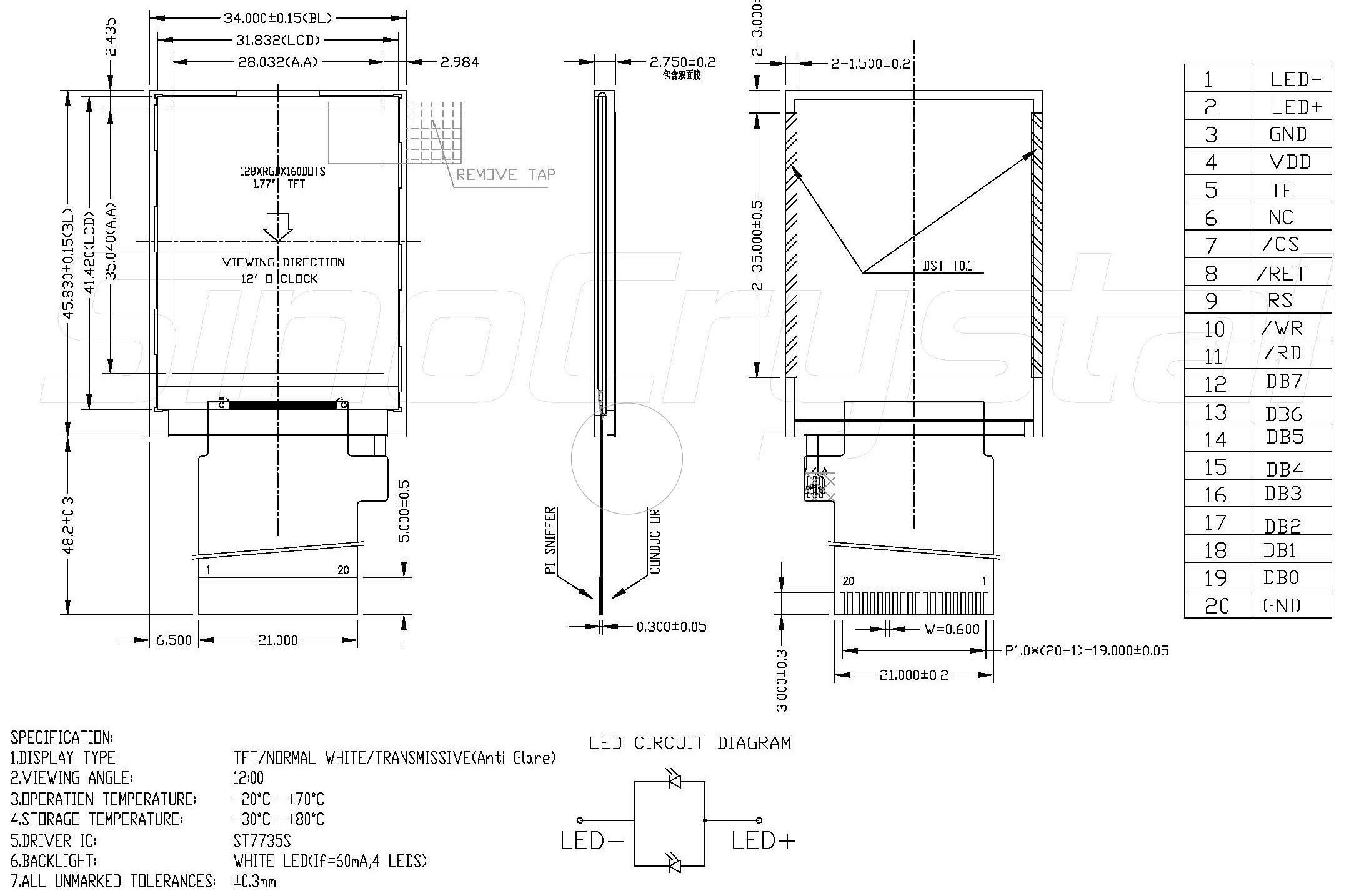

Drawing
General Specification
Item
Nominal Dimension
Unit
Dot Matrix
128 x RGB x 160
Dots
Module Size ( W×H×T )
34.0 x 45.83 x 2.75(max)
mm.
Active Area ( W×H )
28.032 x 35.040
mm.
Pixel arrangement
RGB Stripe
mm.
Dot Pitch ( W×H )
0.219 x 0.219
mm.
Color depth
262K(MAX)
colors
Interface
8 bit MCU
-
Driving IC Package
COG
-
Operating temperature
-20 ~70
ºC
Storage temperature
-30~80
ºC
LCD Type
a-Si TFT
-
LCD Mode
TN/Normal White
-
Backlight Type
LED x 2
PCS
Interface Definition
| Pin No | Pin Symbol | Level | Description |
| 1 | LED- | - | LED light, cathode. |
| 2 | LED+ | - | LED light, anode |
| 3 | GND | 0V | Ground |
| 4 | VDD | 2.3-3.6V | Power supply |
| 5 | TE | - | Tearing effect output |
| 6 | NC | - | Dummy |
| 7 | /CS | H/L | Chip Select signal |
| 8 | /RESET | H/L | Chip reset signal |
| 9 | RS | H/L | Register select signal. 0:index register; 1: data register |
| 10 | /WR | H/L | Write signal |
| 11 | /RD | H/L | Read signal |
| 12 | DB7 | H/L | data bus 7 |
| 13 | DB6 | H/L | data bus 6 |
| 14 | DB5 | H/L | data bus 5 |
| 15 | DB4 | H/L | data bus 4 |
| 16 | DB3 | H/L | data bus 3 |
| 17 | DB2 | H/L | data bus 2 |
| 18 | DB1 | H/L | data bus 1 |
| 19 | DB0 | H/L | data bus 0 |
| 20 | GND | 0V | Ground |
