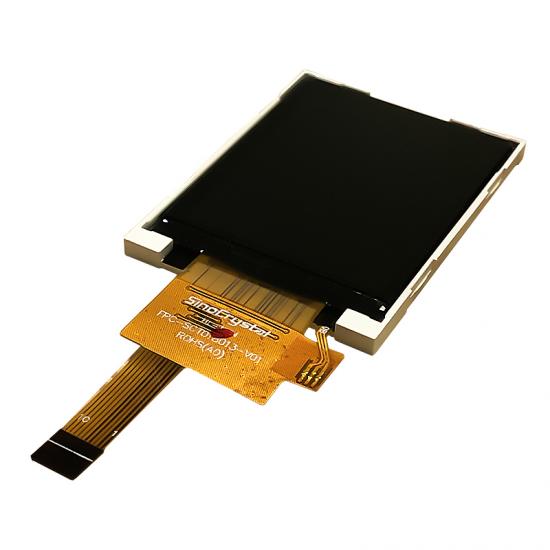

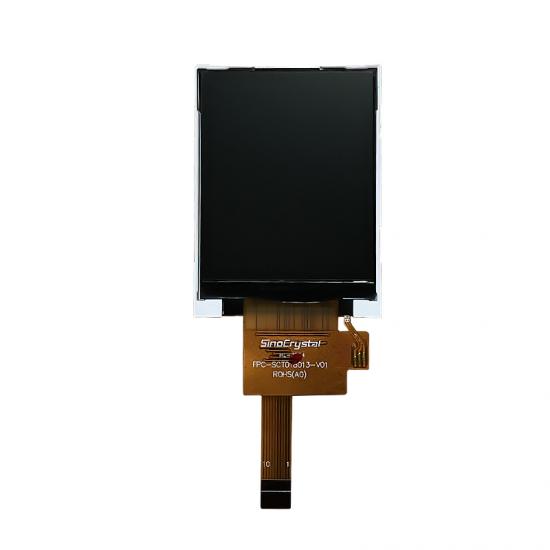

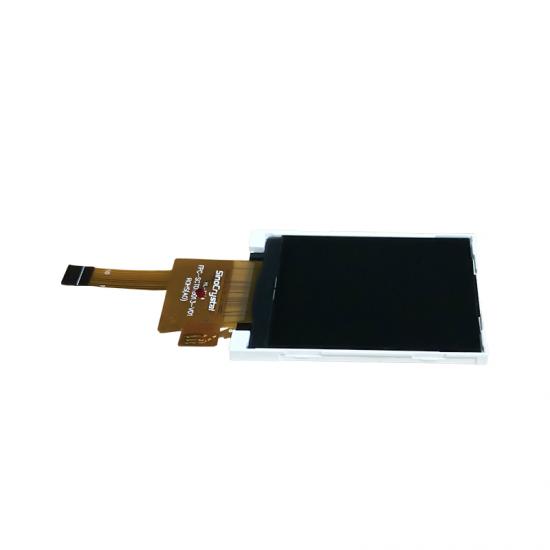

SCT018013-V01是一款1.77英寸TFT液晶显示器，分辨率为128x160，内置ST7735S IC，支持SPI接口，10针，12点钟方向。
型号:
SCT018013-V01Size (inch)尺寸（英寸）:
1.8寸分辨率:
128*160外形尺寸（mm）:
34.00*45.83*2.60可视尺寸（mm）:
31.83*41.42视域尺寸（mm）:
28.032*35.040视角:
12接口:
SPIIC型号:
ST7735S亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°C
Basic Information
Resolution: 128x160
Outline Dimension: 34.00*45.83*2.75
Active Area: 28.032*35.040
View area: 31.832*41.420
Interface: SPI
Driver IC: ST7735S
View Direction: 12 o'clock
PIN: 10
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

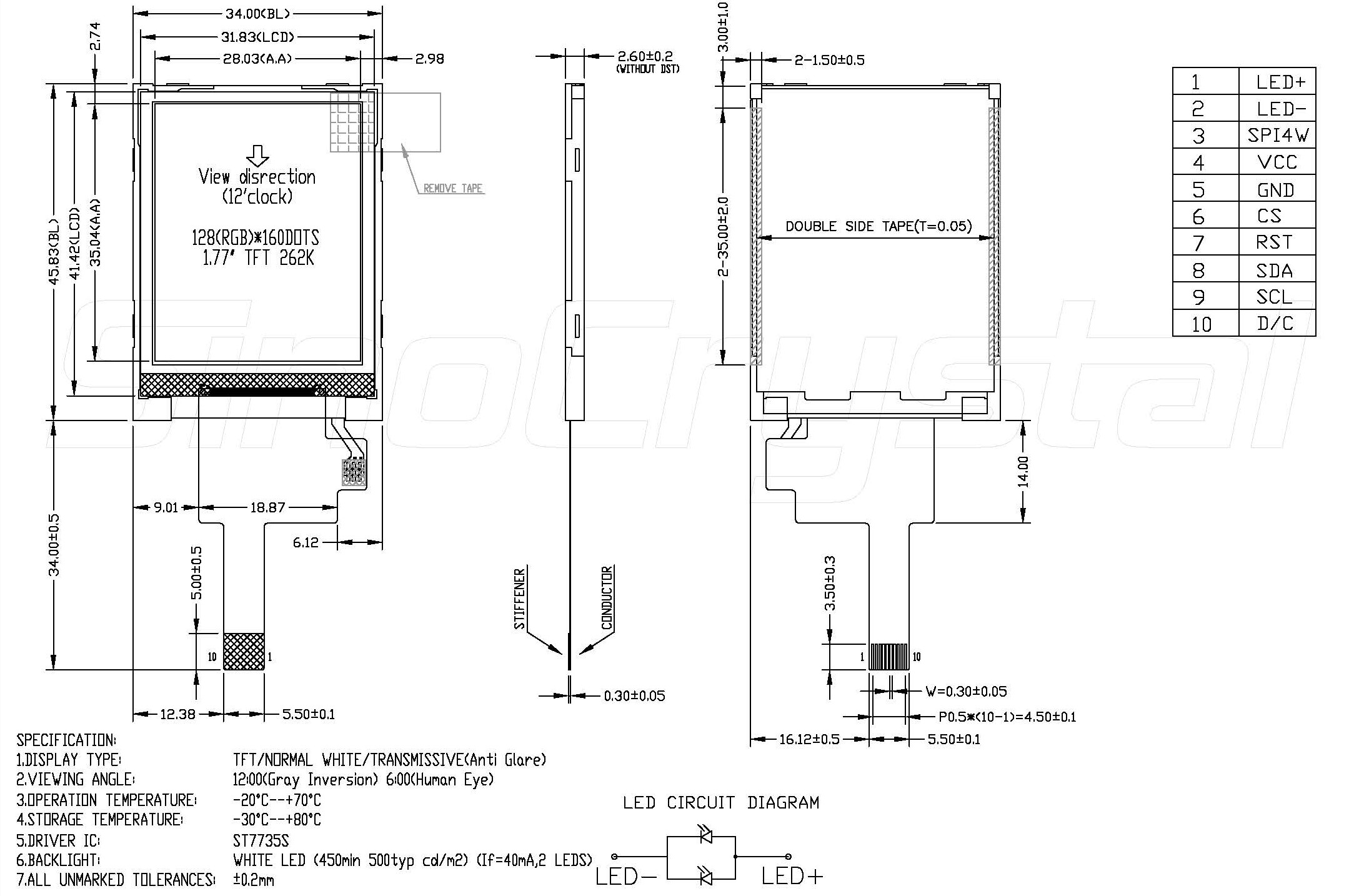

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 128 x RGB x 160 | Dots |
| Module Size ( W×H×T ) | 34.0 x 45.83 x 2.60 | mm. |
| Active Area ( W×H ) | 28.032 x 35.040 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.219 x 0.219 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | SPI | - |
| Driving IC | ST7735S | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | TN / Normal White | - |
| Backlight Type | LED x 2 | PCS |
Interface Definition
| Pin No | Pin Symbol | Type | Description |
| 1 | LED+ | P | LED light, anode |
| 2 | LED- | P | LED light, cathode. |
|
|
|
|
- SPI4W='0', 3-line SPI Enable. |
| 3 | SPI4W | I | - SPI4W='1', 4-line SPI Enable. |
| 4 | VCC | P | Power supply |
| 5 | GND | P | Ground |
| 6 | CS | I | Chip Select |
| 7 | RESET | I | Chip reset signal |
| 8 | SDA | I/O | Serial data input/output signal |
| 9 | SCL | I | Serial clock input signal |
| 10 | D/C | I |
In 4-line SPI: -D/CX='1': Display Data or Parameter. -D/CX='0': Command Data. In 3-line SPI: no used If not used, please fix this pin at GND level |
