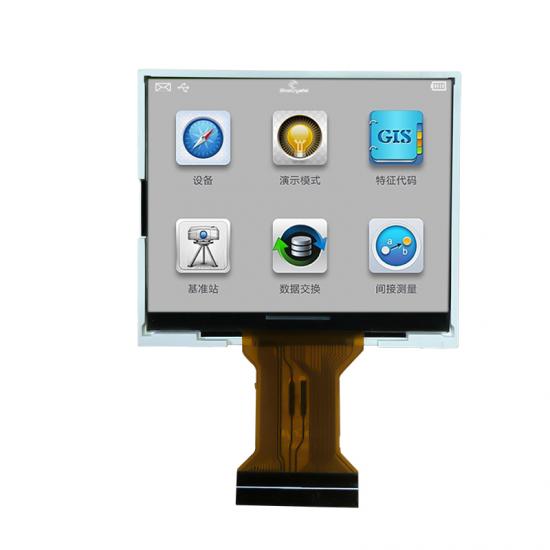

型号:
SCT024001-V01Size (inch)尺寸（英寸）:
2.4寸分辨率:
480*234外形尺寸（mm）:
55.20*47.55*2.80可视尺寸（mm）:
48.00*35.685视域尺寸（mm）:
52.40*43.56视角:
6接口:
8bit RGBIC型号:
OTA5182A亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 480*234
Outline Dimension: 55.20*47.55*2.80
Active Area: 48.00*35.685
View area: 52.40*43.56
Interface: 8bit RGB
Driver IC: OTA5182A
View Direction: 6 o'clock
PIN: 40
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

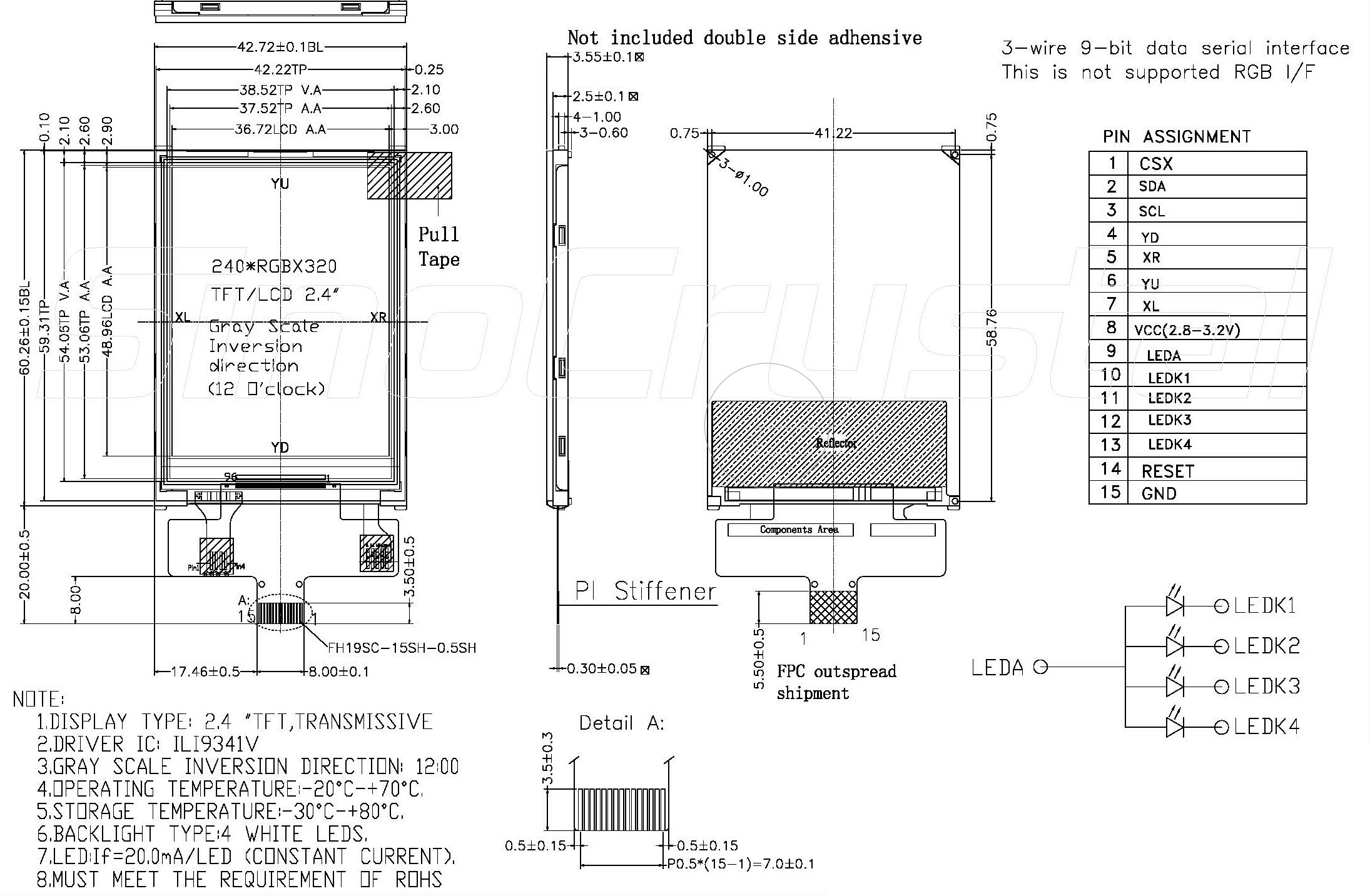

Drawing
General Specification
Item
Nominal Dimension
Unit
Dot Matrix
240 x RGB x 320
Dots
Module Size ( W×H×T )
42.72 x 60.26 x 3.55
mm.
Active Area ( W×H )
36.72 x 48.96
mm.
Pixel arrangement
RGB Stripe
mm.
Dot Pitch ( W×H )
0.153 x 0.153
mm.
Color depth
262K(MAX)
colors
Interface
3-line SPI
-
Driving IC Package
COG
-
Operating temperature
-20 ~70
ºC
Storage temperature
-30~80
ºC
LCD Type
a-Si TFT
-
LCD Mode
TN/Normal White
-
Backlight Type
LED x 4
PCS
Interface Definition
Pin No
Pin Symbol
Level
Description
1
CSX
0V
Chip select
2
SDA
H/L
SPI data
3
SCL
H/L
SPI clock
4
YD
-
Touch panel bottom
5
XR
-
Touch panel right
6
YU
-
Touch panel top
7
XL
-
Touch panel left
8
VCC
2.8-3.2V
Power supply
9
LEDA
-
LED light, anode
10
LEDK1
-
LED light, cathode.
11
LEDK2
-
LED light, cathode.
12
LEDK3
-
LED light, cathode.
13
LEDK4
-
LED light, cathode.
14
RESET
H/L
Reset signal
15
GND
0V
Ground
