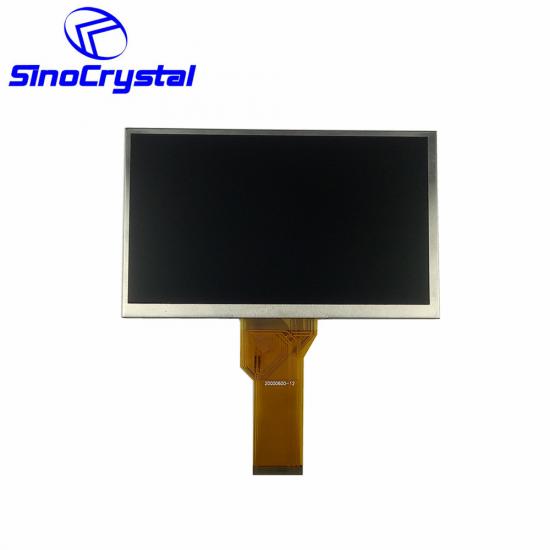

SCT070002-V01是一款7英寸IPS TFT LCD显示屏，分辨率为800 x 480，支持数字18位RGB接口，40针
型号:
SCT070002-V01Size (inch)尺寸（英寸）:
7寸分辨率:
800*480外形尺寸（mm）:
165.00*104.00*6.5可视尺寸（mm）:
155.00*88.44视域尺寸（mm）:
153.6*86.64视角:
6接口:
Digital RGB (6bits/color) Data TransferIC型号:
-亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 720 x RGB x 1280
Outline Dimension: 64.30*118.30*1.55
Active Area: 61.78*109.82
View Area: 155.00*88.44
Interface: Digital RGB (6bits/color) Data Transfer
View Direction: 6 o'clock
PIN: 40
Backlight: White LED
Touch Screen: Resistive Touch Screen
General Specification
| Item | Specification | Unit |
| Screen Size | 7.0 inches | Diagonal |
| Display Resolution | 800 (H) x 480 (V) | Pixel |
| Active Area | 153.6 (H) x 86.64 (V) | mm |
| Outline Dimension | 165.00 (H) x 104.00 (V) x 6.5 (T) | mm |
| Display Mode | Normally white mode/ Transmissive | -- |
| Surface Treatment | Anti-glare(AG) | -- |
| Pixel Arrangement | R,G,B Vertical Stripe | -- |
| Pixel Size | 192 x 180.5 | um |
| Display Color | Full Colors | -- |
| Viewing Direction | 6 o'clock | -- |
| Input Interface | Digital RGB (6bits/color) Data Transfer | -- |
Interface Definition
Pin No.
Symbol
I/O
Function
1
GND
P
Ground
2
GND
P
Ground
3
ADJ
I
Back-light Dimming control
4
VLED
P
Power Supply LED voltage
5
VLED
P
Power Supply LED voltage
6
VLED
P
Power Supply LED voltage
7
VCC
P
Power Supply Logic voltage
8
VCC
P
Power Supply Logic voltage
9
DE
I
Data Enable Timing Signal
10
GND
P
Ground
11
GND
P
Ground
12
GND
P
Ground
13
B5
I
Blue data signal (MSB)
14
B4
I
Blue data signal
15
B3
I
Blue data signal
16
GND
P
Ground
17
B2
I
Blue data signal
18
B1
I
Blue data signal
19
B0
I
Blue data signal (LSB)
20
GND
P
Ground
21
G5
I
Green data signal (MSB)
22
G4
I
Green data signal
23
G3
I
Green data signal
24
GND
P
Ground
25
G2
I
Green data signal
26
G1
I
Green data signal
27
G0
I
Green data signal (LSB)
28
GND
P
Ground
29
R5
I
Red data signal (MSB)
30
R4
I
Red data signal
31
R3
I
Red data signal
32
GND
P
Ground
33
R2
I
Red data signal
34
R1
I
Red data signal
35
R0
I
Red data signal (LSB)
36
GND
P
Ground
37
GND
P
Ground
38
DCLK
I
Data Clock
39
GND
P
Ground
40
GND
P
Ground
