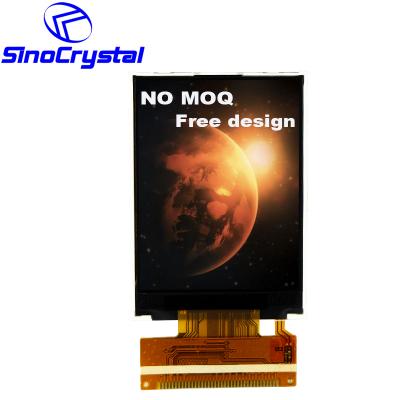

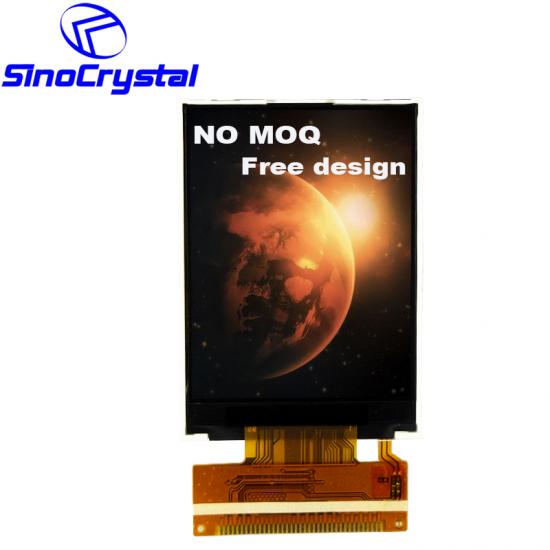

SCT024006-V01是一款2.4英寸TFT液晶显示器，分辨率240RGB*320，内置ILI9341集成电路，支持MCU接口，36针，12点钟视角。
型号:
SCT024006-V01Size (inch)尺寸（英寸）:
2.4寸分辨率:
240*320外形尺寸（mm）:
47.72*60.26*2.40可视尺寸（mm）:
40.32*56.26视域尺寸（mm）:
36.72*48.96视角:
12接口:
MCUIC型号:
ILI9341V亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 240RGB*320
Outline Dimension: 47.72*60.26*2.40
Active Area: 36.72*48.96
View area: 40.32*56.26
Interface: MCU
Driver IC: ILI9341
View Direction: 12 o'clock
PIN: 36
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

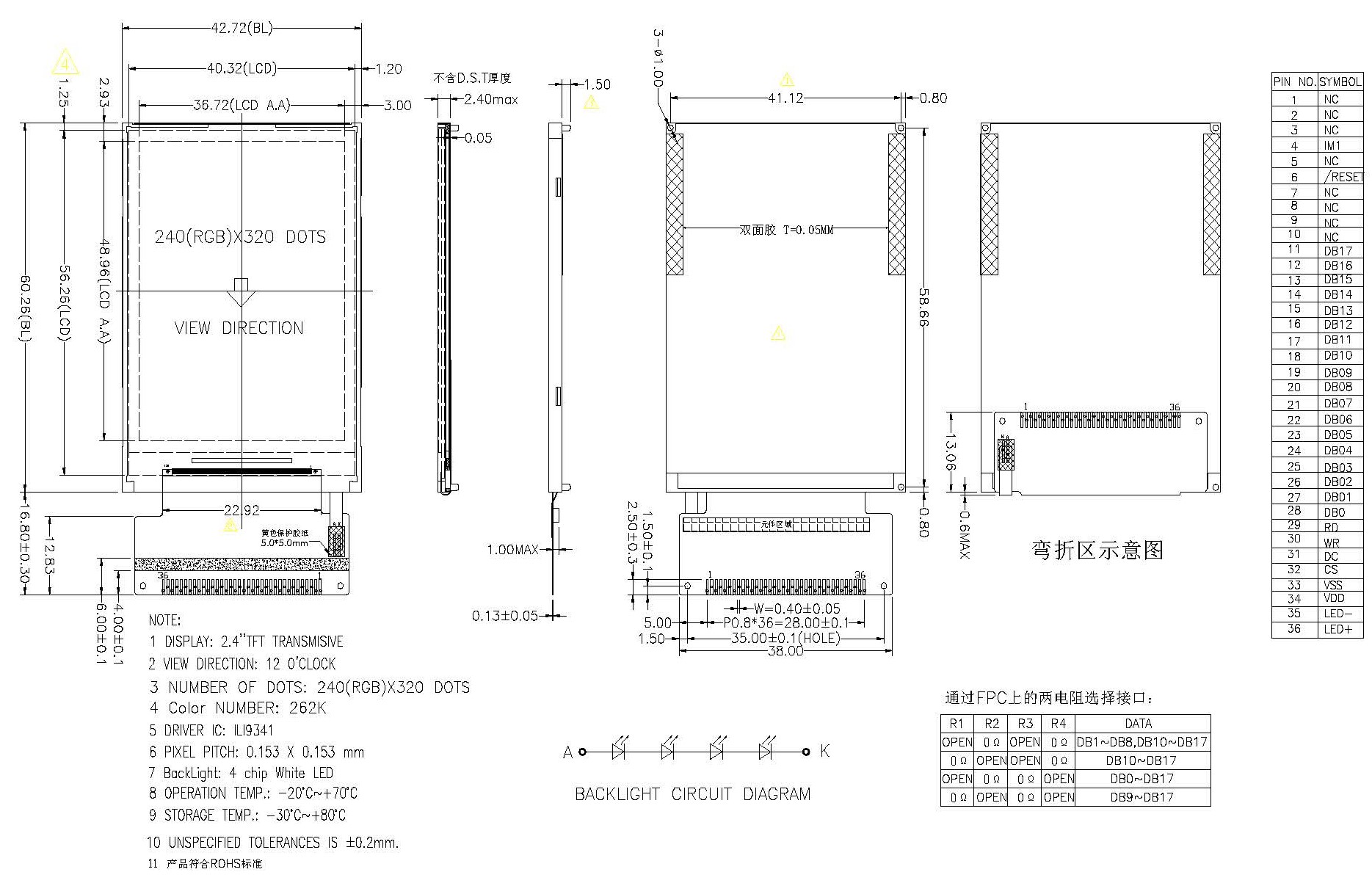

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 240 x RGB x 320 | Dots |
| Module Size ( W×H×T ) | 42.72 x 60.26 x 3.55 | mm. |
| Active Area ( W×H ) | 36.72 x 48.96 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | MCU | - |
| Driving IC Package | COG | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | TN/Normal White | - |
| Backlight Type | LED x 4 | PCS |
Interface Definition
Pin No
Pin Symbol
Level
Description
1--3
NC
-
No use
4
IM1
H/L
MCU Interface Mode Select, IM1 has been set to 0
5
NC
-
No use
6
/RESET
H/L
Reset signal
7--10
NC
-
No use
11--28
D17 - D0
H/L
Data bus , Fix to VSS level when not in use D[17:10] and D[8:1] used
29
RD
H/L
Read Signal
30
WR
H/L
Write Signal
31
DC
H/L
selector of command or parameter
32
CS
H/L
Chip Select
33
GND
0V
Ground
34
VDD
2.8-3.2V
Power supply
35
K
-
LED light, cathode
36
A
-
LED light, anode
