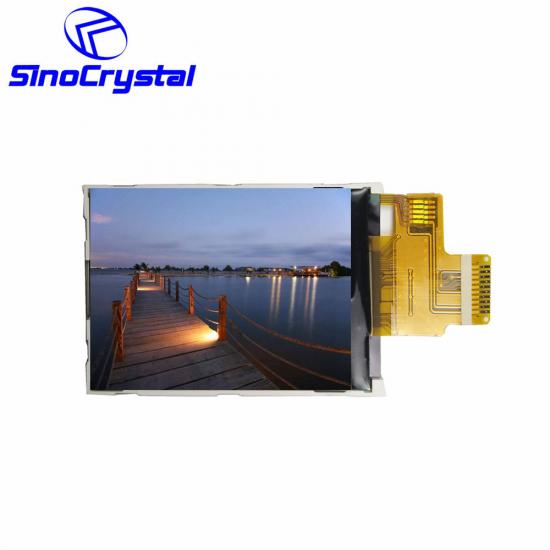

SCT024010-V01是一款分辨率为240RGB*320的2.4英寸TFT液晶显示器，内置HX8347I IC，支持4线SPI接口，10针，12点钟方向。
型号:
SCT024010-V01Size (inch)尺寸（英寸）:
2.4寸分辨率:
240*320外形尺寸（mm）:
42.72*60.26*2.45可视尺寸（mm）:
36.72*4.96视域尺寸（mm）:
40.32*56.26视角:
12接口:
4-line SPIIC型号:
HX83471亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 240RGB*320
Outline Dimension: 47.72*60.26*2.40
Active Area: 36.72*48.96
View area: 40.32*56.26
Interface: 4-line SPI
Driver IC: HX8347I
View Direction: 6 o'clock
PIN: 10
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.

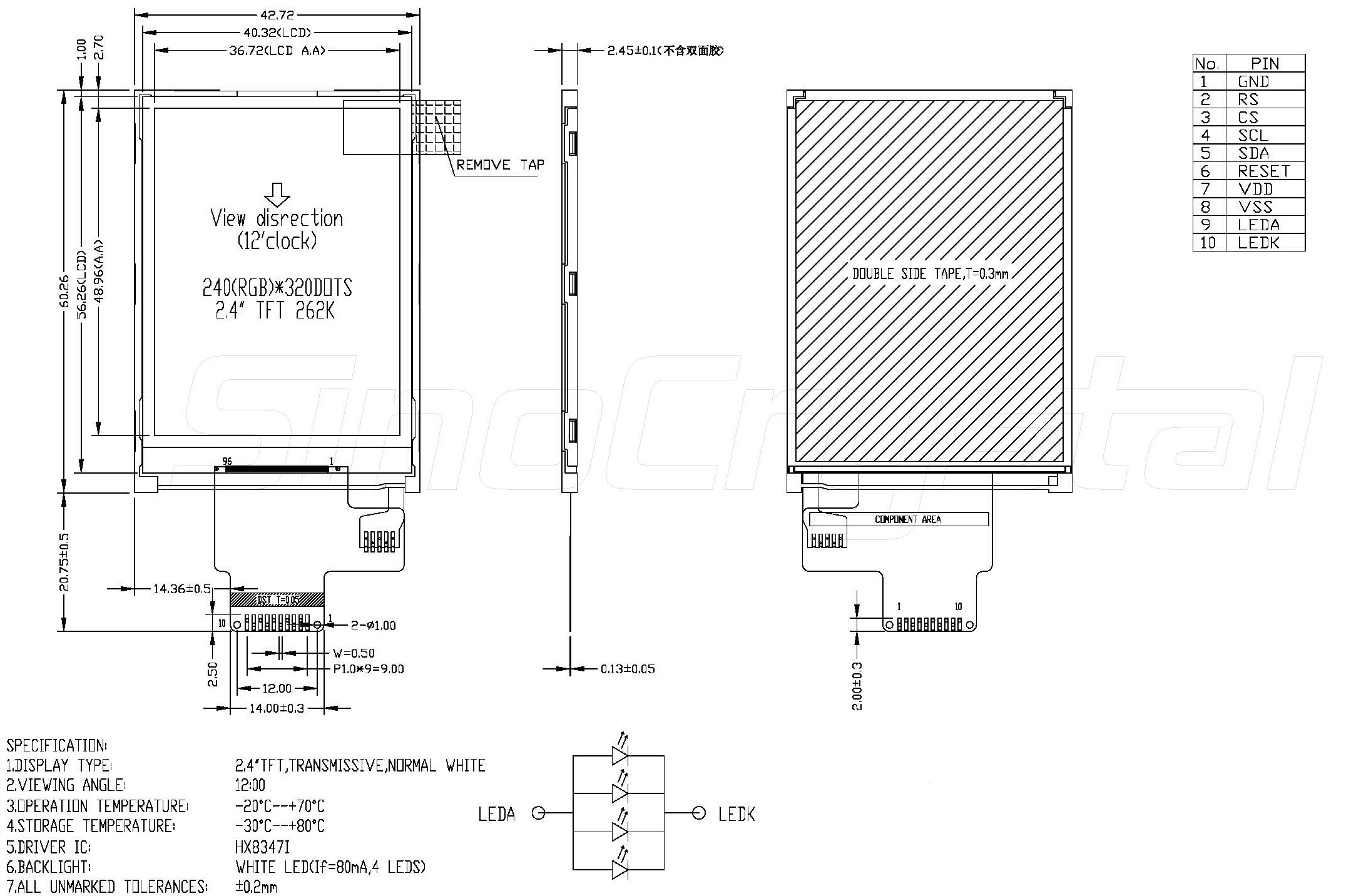

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 240 x RGB x 320 | Dots |
| Module Size ( W×H×T ) | 42.72 x 60.26 x 2.45 | mm. |
| Active Area ( W×H ) | 36.72 x 48.96 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.153 x 0.153 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 4-line SPI | - |
| Driving IC Package | COG | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | TN/Normal White | - |
| Backlight Type | LED x 4 | PCS |
Interface Definition
Pin No
Pin Symbol
Level
Description
1
GND
0V
Ground
Command / parameter or display data selection 0: Command or parameter
2
RS
H/L
1: Display data
3
CS
0V
Chip select
4
SCL
H/L
SPI clock
5
SDA
H/L
SPI data
6
RESET
H/L
Reset signal
7
VCC
2.8-3.2V
Power supply
8
GND
0V
Ground
9
LEDA
-
LED light, anode
10
LEDK
-
LED light, cathode.
