SCT035001-V04是一款分辨率为320RGB*240的3.5英寸TFT液晶显示器，内置HX8238-D IC，支持24位RGB接口，54针，12点钟方向
型号:
SCT035001-V04Size (inch)尺寸（英寸）:
3.5寸分辨率:
320*240外形尺寸（mm）:
76.90*63.90*3.27可视尺寸（mm）:
-视域尺寸（mm）:
70.08*52.56视角:
12接口:
24bit RGBIC型号:
HX8238-D亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 320RGB*240
Outline Dimension: 76.90*63.90*3.20
Active Area: 70.08*52.56
View area: 73.1*55.5
Interface: 24bit RGB
Driver IC: HX8238-D
View Direction: 12 o'clock
PIN: 54
Backlight: White LED
Touch Screen: No touch screen for standard. If you need touch, click for a inquiry

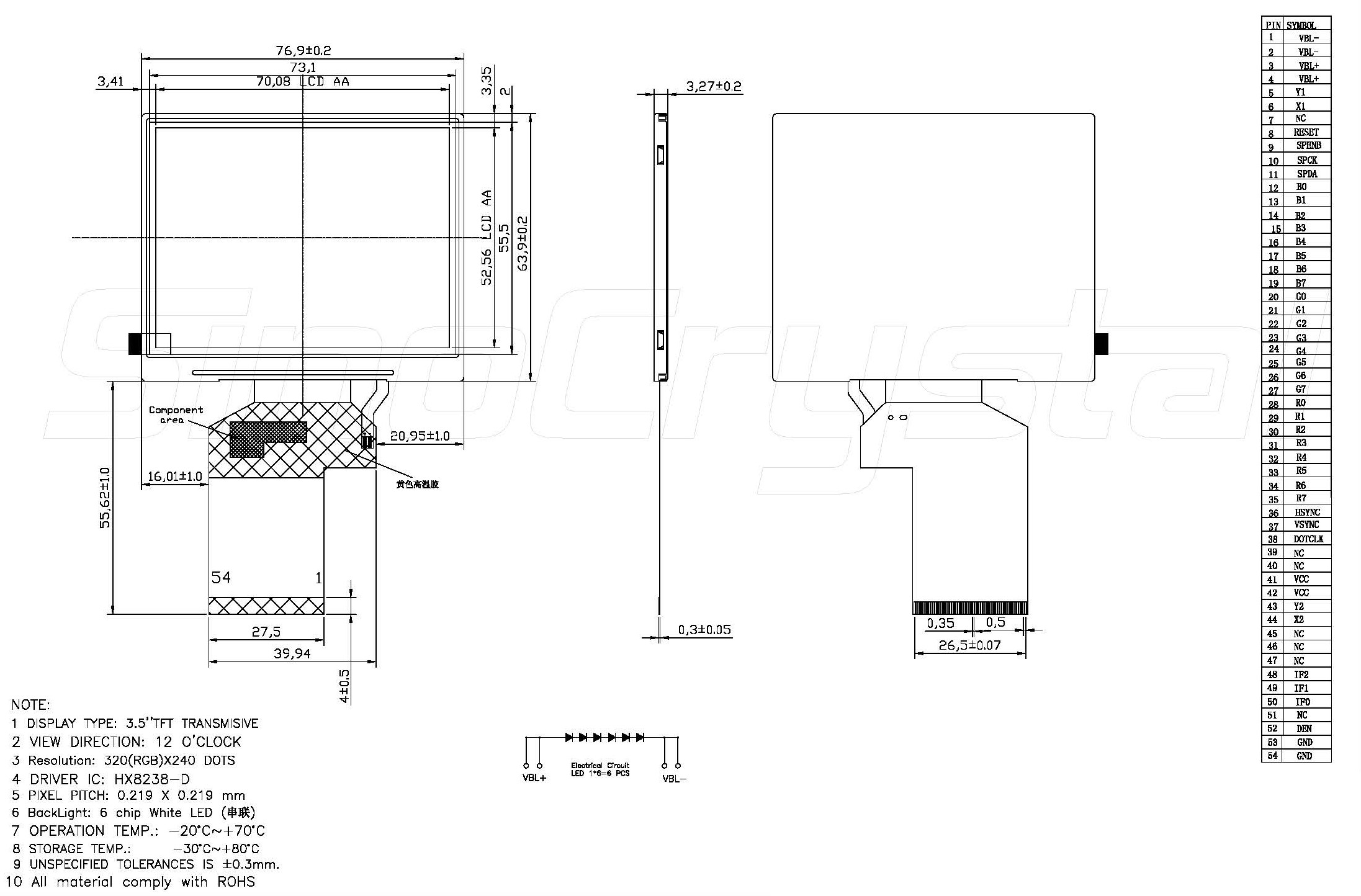

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 320 x RGB x 240 | Dots |
| Module Size ( W×H×T ) | 76.90*63.90*4.40 | mm. |
| Active Area ( W×H ) | 70.08*52.56 | mm. |
| Color depth | 262K(MAX) | colors |
| Interface | 24bit RGB with Serial Interface | - |
| Driving IC |
HX8238-D |
- |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature |
-30~80 |
ºC |
| LCD Type | Active maritx TFT, Transmissive type | - |
| LCD Mode | TN / Normal White | - |
| Backlight Type | LED x 6 | PCS |
Interface Definition
