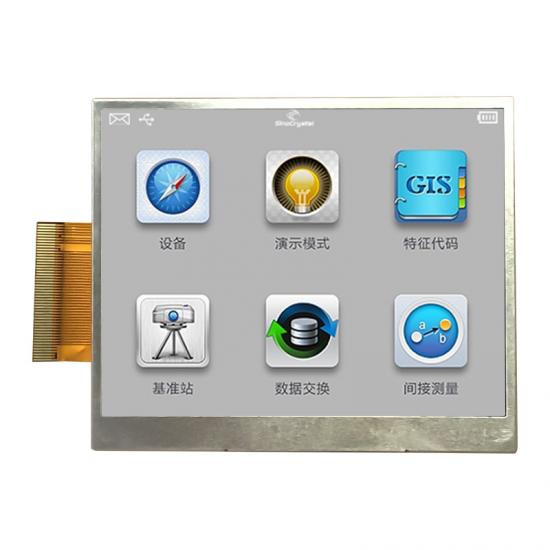

SCT035005-V01是一款分辨率为320RGB*240的3.5英寸TFT液晶显示器，内置HX8238-D集成电路，支持24位RGB接口，54针，12点钟视角
型号:
SCT035005-V01Size (inch)尺寸（英寸）:
3.5寸分辨率:
320*240外形尺寸（mm）:
76.90*63.90*3.05可视尺寸（mm）:
-视域尺寸（mm）:
70.08*52.56视角:
6接口:
MCU & RGBIC型号:
SSD2119M亮度（cd/m m2）:
300触摸:
No温度 (℃):
-20°C~70°CBasic Information
Resolution: 320RGB*240
Outline Dimension: 76.90*63.90*3.05
Active Area: 70.08*52.56
View area: 71.08*53.56
Interface: MCU & RGB
Driver IC: SSD2119M
View Direction: 6 o'clock
PIN: 50
Backlight: White LED
Touch Screen: No touch screen for standard. If you need touch, click for a inquiry

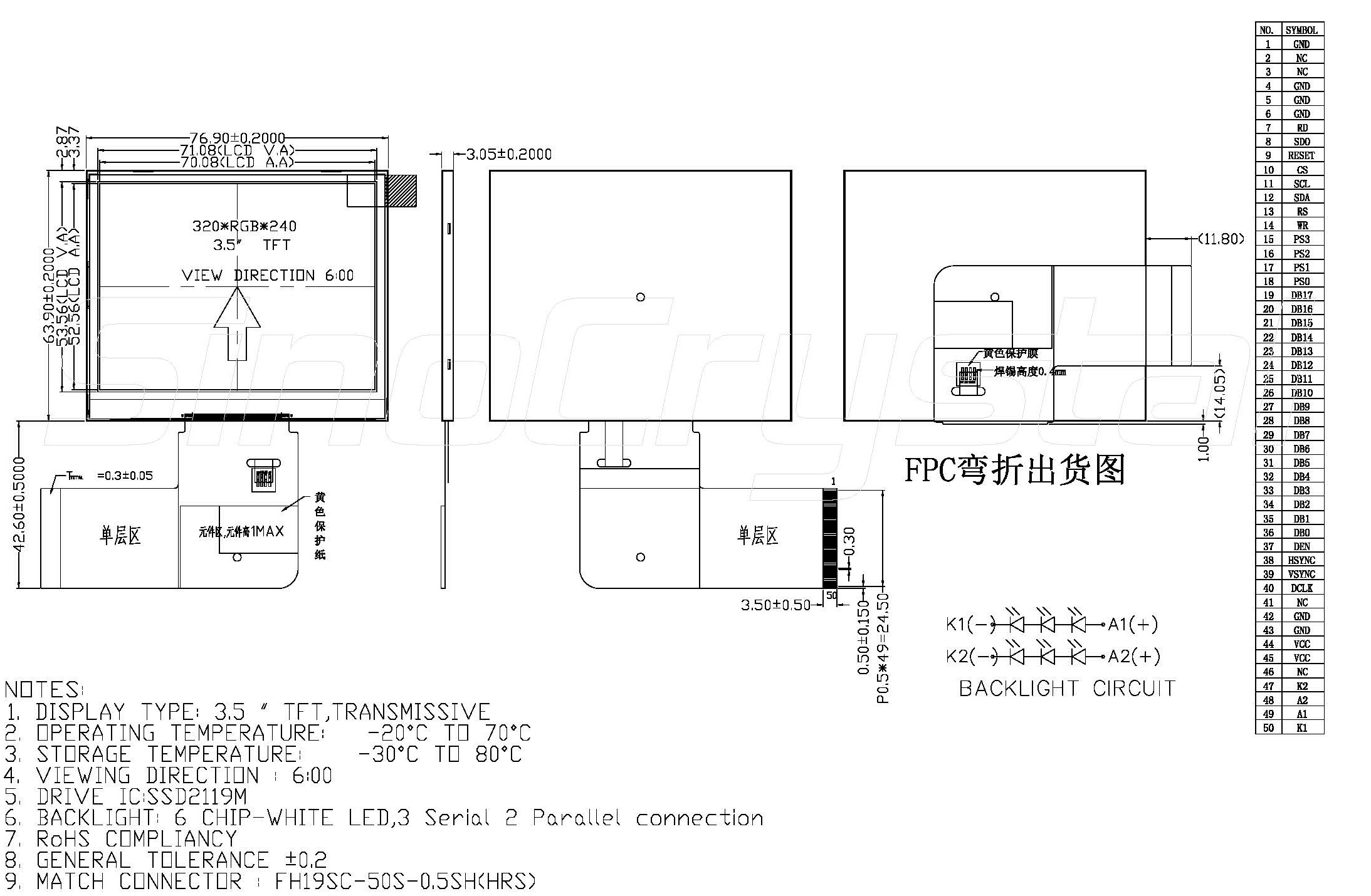

Drawing
General Specification
| Item | Nominal Dimension | Unit |
| Dot Matrix | 320 x RGB x 240 | Dots |
| Module Size ( W×H×T ) | 76.90 x 63.90 x 3.05 | mm. |
| Active Area ( W×H ) | 70.08 x 52.56 | mm. |
| Pixel arrangement | RGB Stripe | mm. |
| Dot Pitch ( W×H ) | 0.219 x 0.219 | mm. |
| Color depth |
262K(MAX) |
colors |
| Interface | MCU & RGB | - |
| Driving IC Package | COG | - |
| Operating temperature | -20 ~70 | ºC |
| Storage temperature | -30~80 | ºC |
| LCD Type | a-Si TFT | - |
| LCD Mode | TN/Normal White | - |
| Backlight Type | LED x 6 | PCS |
Interface Definition
| Pin No | Pin Symbol | Level | Description |
| 1 | GND | 0V | Ground |
| 2--3 | NC | - | No use |
| 4--6 | GND | 0V | Ground |
| 7 | RD | H/L |
6800-system: E(enable signal) 8080-system : RD (read strobe signal) |
| 8 | SDO | H/L | Data output pin in serial interface |
| 9 | RESET | H/L | Reset signal |
| 10 | CS | H/L | Chip Select |
| 11 | SCL | H/L | Serial clock input |
| 12 | SDA | H/L | Data input pin in serial interface |
| 13 | RS | H/L | selector of command or parameter |
|
|
|
|
6800-system : RW (indicates read cycle when High, write cycle when Low) |
| 14 | WR | H/L | 8080-system : WR (write strobe signal) |
| 15 | PS3 | H/L | Detail see below picture |
| 16 | PS2 | H/L | |
| 17 | PS1 | H/L | |
| 18 | PS0 | H/L | Data bus , Fix to VSS level when not in use |
| 19-36 | DB17 - DB0 | H/L | When 16-bit be selected, D[17:10] and D[8:1] used |
| 37 | DEN | H/L | Display enable pin from controller. |
| 38 | VSYNC | H/L | Frame/Ram Write Synchronization input |
| 39 | HSYNC | H/L | Line Synchronization input |
|
|
|
|
Dot-clock signal and oscillator source. A non-stop external |
| 40 | DCLK | H/L | clock must be provided to that pin even at front or black porch non-display period. |
| 41 | NC |
- |
No use |
| 42-43 | GND | 0V | Ground |
| 44-45 | VDD | 2.8-3.3V | Power supply |
| 46 | NC | - | No use |
| 47 | K2 | - | LED light, cathode |
| 48 | A2 |
|
LED light, anode |
| 49 | A1 |
|
LED light, anode |
| 50 | K1 | - | LED light, cathode |
